# Please solve this question correctly and show all your works.
Make sure your handwriting is readable.

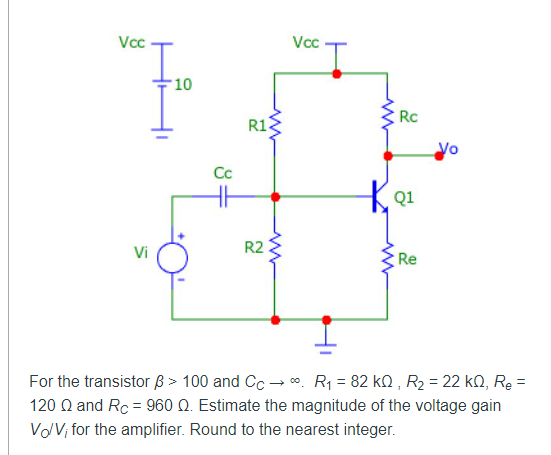

Vcc 10 8 Cc www R1 R2 ww Vcc www Rc KQ1 Re www Vo Vi For the transistor ß> 100 and Cc→ R₁ = 82 kQ, R₂ = 22 KQ, Re= 120 Q and Rc = 960 Q. Estimate the magnitude of the voltage gain Vo/V, for the amplifier. Round to the nearest integer.
