A 12VDC, 3-phase unipolar stepping motor has 24 teeth and holding torque 31.4 mNm. The static torque is assumed to be a

[answerhappygod]

A 12vdc 3 Phase Unipolar Stepping Motor Has 24 Teeth And Holding Torque 31 4 Mnm The Static Torque Is Assumed To Be A 1 (35.89 KiB) Viewed 43 times

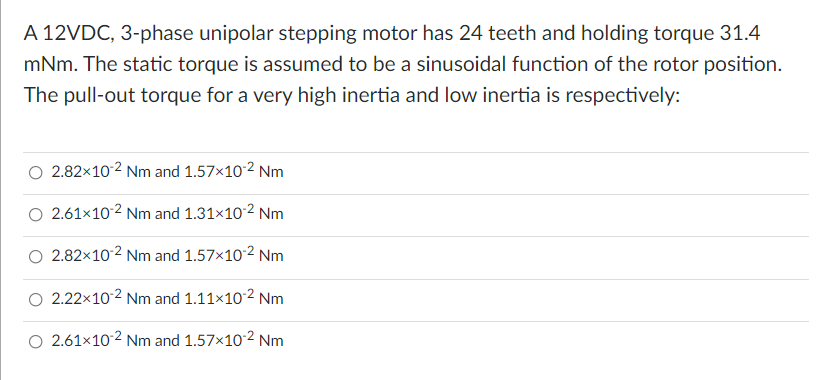

A 12VDC, 3-phase unipolar stepping motor has 24 teeth and holding torque 31.4 mNm. The static torque is assumed to be a sinusoidal function of the rotor position. The pull-out torque for a very high inertia and low inertia is respectively: 2.82×10-2 Nm and 1.57×10-² Nm ○ 2.61×10-² Nm and 1.31×10-² Nm O 2.82×10-2 Nm and 1.57×10-² Nm O 2.22×10-2 Nm and 1.11×10-² Nm O 2.61×10-2 Nm and 1.57x10-2 Nm
