... Task 2 1. A series RLC circuit has a Q of 0.5 at its resonance frequency of 100 kHz. Assuming the power dissipation,

[answerhappygod]

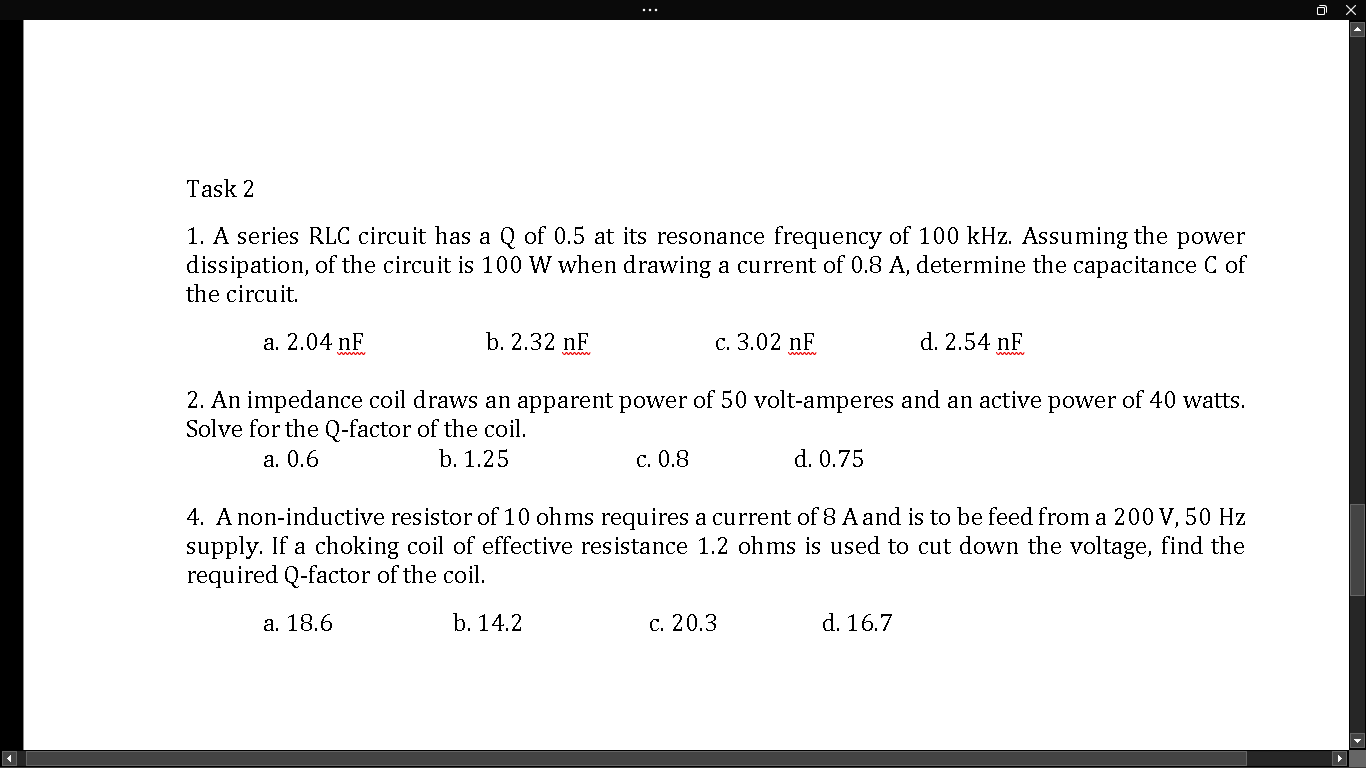

Task 2 1 A Series Rlc Circuit Has A Q Of 0 5 At Its Resonance Frequency Of 100 Khz Assuming The Power Dissipation 1 (40.31 KiB) Viewed 58 times

... Task 2 1. A series RLC circuit has a Q of 0.5 at its resonance frequency of 100 kHz. Assuming the power dissipation, of the circuit is 100 W when drawing a current of 0.8 A, determine the capacitance C of the circuit. a. 2.04 nF b. 2.32 nF c. 3.02 nF d. 2.54 nF 2. An impedance coil draws an apparent power of 50 volt-amperes and an active power of 40 watts. Solve for the Q-factor of the coil. a. 0.6 b. 1.25 c. 0.8 d. 0.75 4. A non-inductive resistor of 10 ohms requires a current of 8 A and is to be feed from a 200 V, 50 Hz supply. If a choking coil of effective resistance 1.2 ohms is used to cut down the voltage, find the required Q-factor of the coil. a. 18.6 b. 14.2 c. 20.3 d. 16.7
