Special Problem -1: Given the pipe setup below with pipe diameter and lengths, determine the flow rate if an elbow has a

Post by answerhappygod »

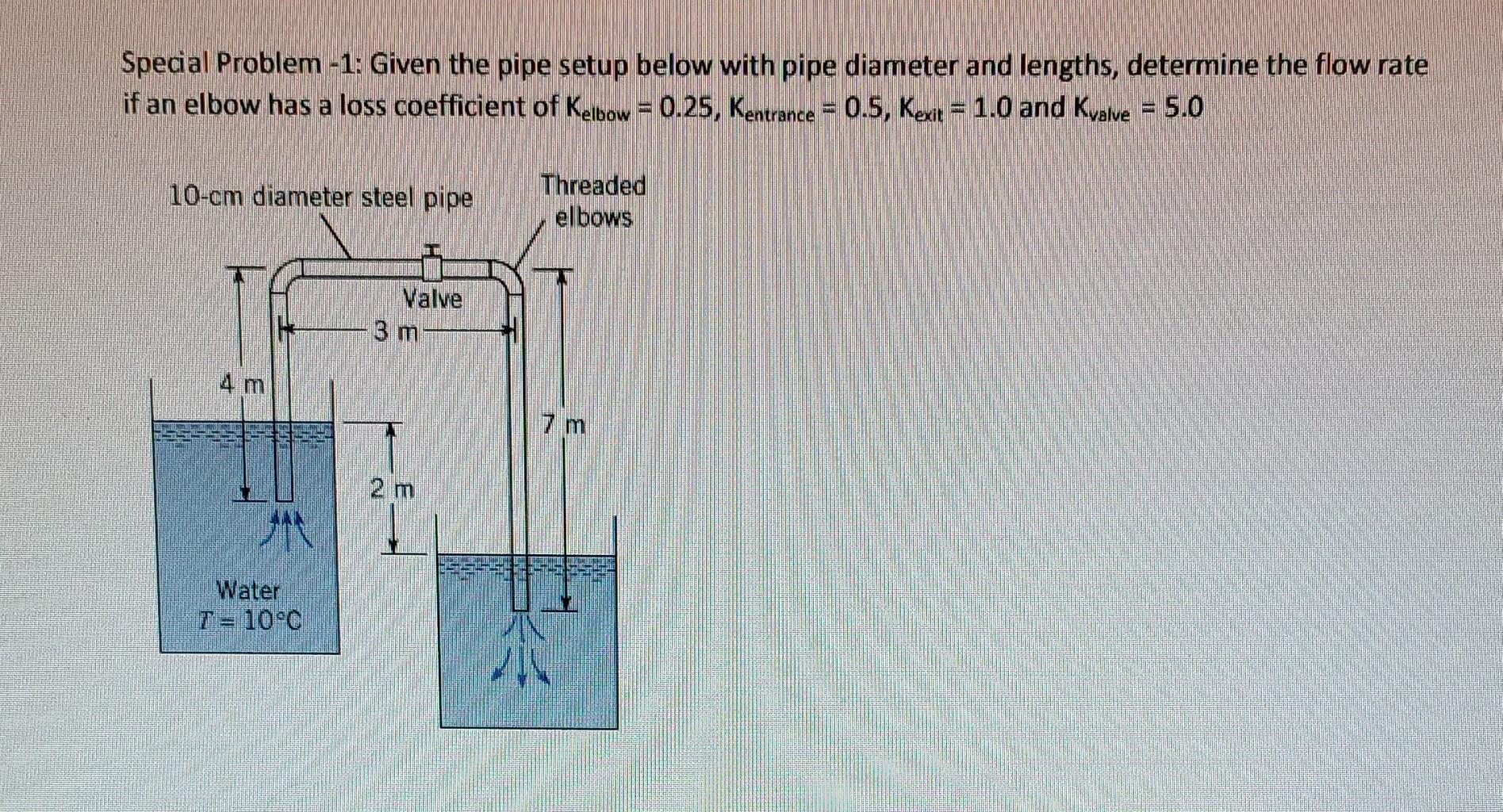

Special Problem 1 Given The Pipe Setup Below With Pipe Diameter And Lengths Determine The Flow Rate If An Elbow Has A 1
Special Problem 1 Given The Pipe Setup Below With Pipe Diameter And Lengths Determine The Flow Rate If An Elbow Has A 1 (557.21 KiB) Viewed 15 times
Special Problem -1: Given the pipe setup below with pipe diameter and lengths, determine the flow rate if an elbow has a loss coefficient of Kelbow = 0.25, Kentrance = 0.5, Kexit = 1.0 and Kvalve = 5.0 10-cm diameter steel pipe Threaded elbows Valve 4 m 7 m Water T = 10°C 3 m
