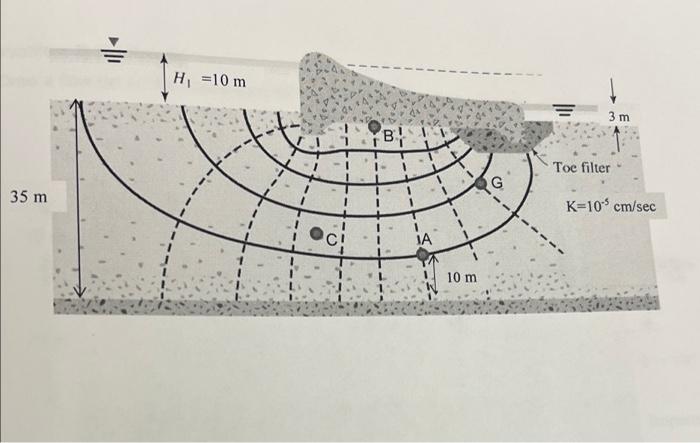

35 m ►||1 H₁ =10 m B. JA 10 m G 3 m Toe filter K-105 cm/sec
Based on the flow net given below, determine the followings: a) Pressure head at point A and G b) Uplift stress (pore water pressure) at point B (B is at the ground elevation) c) Gradient in square C given that its length is 3 m d) Flow rate under the dam
