Z Question 10 150 mm D X 180 mm 360 mm B 2 pts

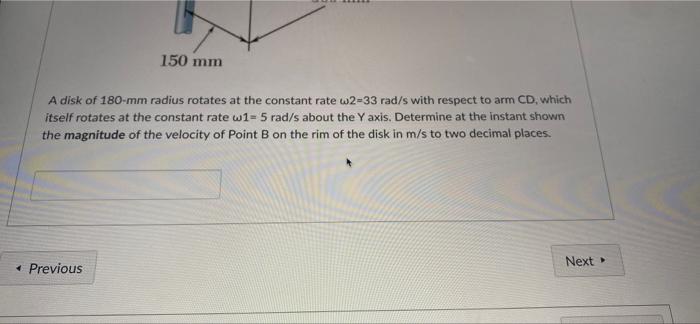

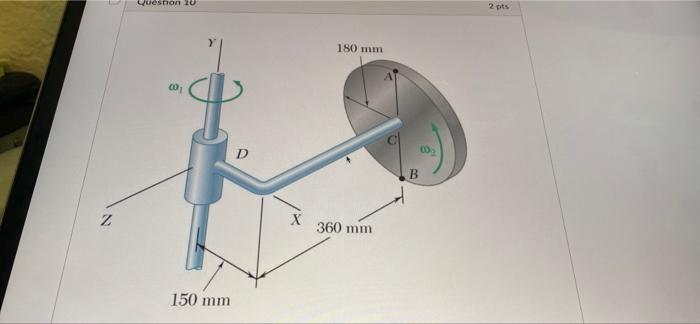

150 mm A disk of 180-mm radius rotates at the constant rate w2-33 rad/s with respect to arm CD, which itself rotates at the constant rate w1-5 rad/s about the Y axis. Determine at the instant shown the magnitude of the velocity of Point B on the rim of the disk in m/s to two decimal places. Next < Previous
