n The load trace will involve the framing for a small deck addition to a residence. AXP BRAMSB00. 4x10 GADERS HOUSE WALL

Post by answerhappygod »

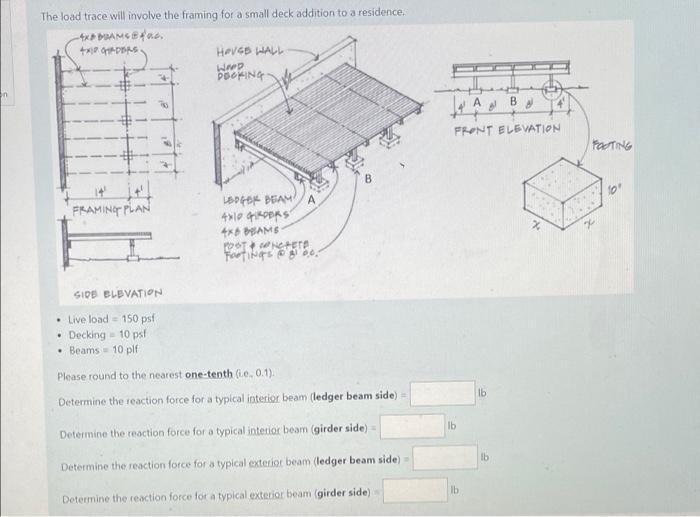

N The Load Trace Will Involve The Framing For A Small Deck Addition To A Residence Axp Bramsb00 4x10 Gaders House Wall 1
N The Load Trace Will Involve The Framing For A Small Deck Addition To A Residence Axp Bramsb00 4x10 Gaders House Wall 1 (41.25 KiB) Viewed 22 times
n The load trace will involve the framing for a small deck addition to a residence. AXP BRAMSB00. 4x10 GADERS HOUSE WALL WERD DOCKING B LOGOK BEAM A 4x10 GROERS 4x6 AMS BOOT CONCHETA. FOOTINGS & B1 0. FRAMING PLAN I SIDE BLEVATION • Live load = 150 psf • Decking - 10 psf Beams 10 plf Please round to the nearest one-tenth (ie, 0.1). Determine the reaction force for a typical interior beam (ledger beam side) = Determine the reaction force for a typical interior beam (girder side) Determine the reaction force for a typical exterior beam (ledger beam side) - Determine the reaction force for a typical exterior beam (girder side) B FRONT ELEVATION x lb lb lb lb FOOTING
