1. (60 pts) Given the beam cross section below with an applied shear force of V=50 kN a. Solve for shear stress at the c

Post by answerhappygod »

1 60 Pts Given The Beam Cross Section Below With An Applied Shear Force Of V 50 Kn A Solve For Shear Stress At The C 1
1 60 Pts Given The Beam Cross Section Below With An Applied Shear Force Of V 50 Kn A Solve For Shear Stress At The C 1 (152.02 KiB) Viewed 17 times

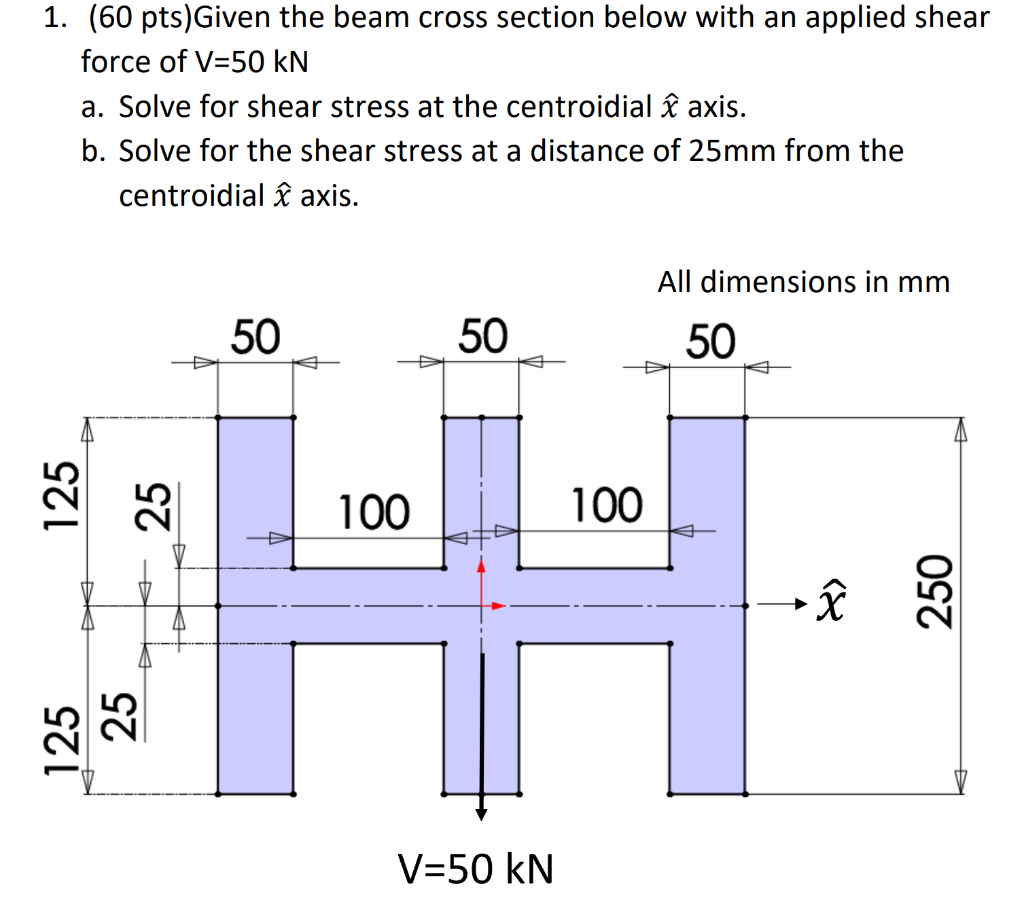

1. (60 pts) Given the beam cross section below with an applied shear force of V=50 kN a. Solve for shear stress at the centroidial î axis. b. Solve for the shear stress at a distance of 25mm from the centroidial axis. All dimensions in mm 50 50 50 125 25 SZ[ 25 100 V=50 kN 100 ·Ñ
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
