Calculate: (1) Ay & Ax, and (2) By & Bx. Both supports are pin supports.

Post by answerhappygod »

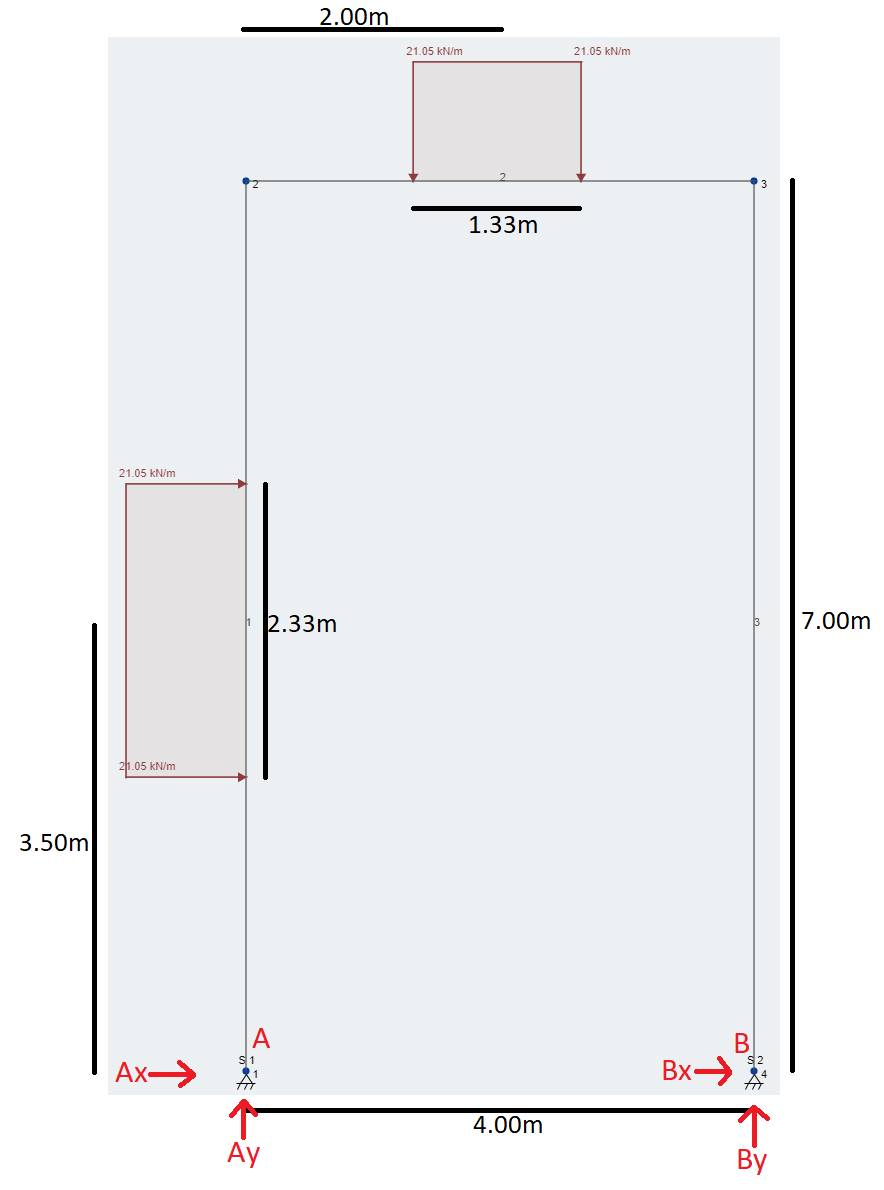

Calculate: (1) Ay & Ax, and (2) By & Bx.
Both supports are pin supports.
Calculate 1 Ay Ax And 2 By Bx Both Supports Are Pin Supports 1
Calculate 1 Ay Ax And 2 By Bx Both Supports Are Pin Supports 1 (33.99 KiB) Viewed 17 times
3.50m 21.05 kN/m 21.05 kN/m Ax→>> Ay 2.00m 2.33m 21.05 kN/m 1.33m 4.00m 21.05 kN/m Bx→ By 7.00m
