A refrigerator with a weight distribution of W, and W₂ is partially lifted by a cable whose tension is T. The refrigerat

[answerhappygod]

A Refrigerator With A Weight Distribution Of W And W Is Partially Lifted By A Cable Whose Tension Is T The Refrigerat 1 (43.69 KiB) Viewed 17 times

A Refrigerator With A Weight Distribution Of W And W Is Partially Lifted By A Cable Whose Tension Is T The Refrigerat 2 (10.52 KiB) Viewed 17 times

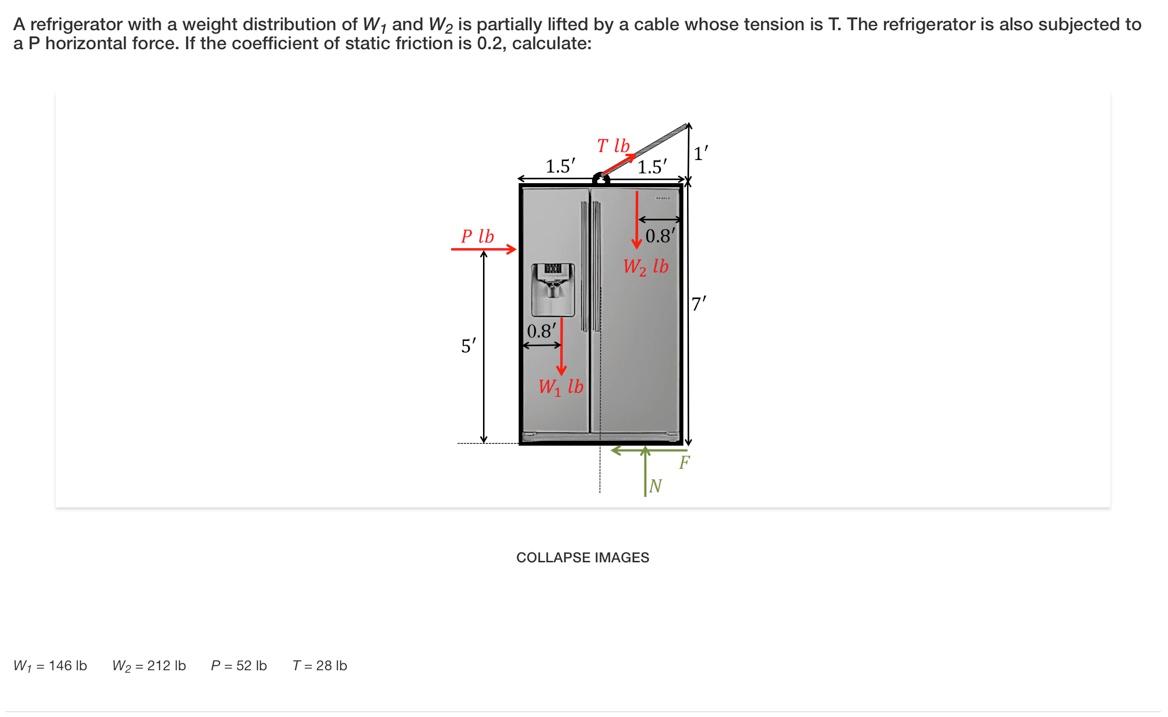

A refrigerator with a weight distribution of W, and W₂ is partially lifted by a cable whose tension is T. The refrigerator is also subjected to a P horizontal force. If the coefficient of static friction is 0.2, calculate: T lb 1.5' 1' XX 0.8' W₁ = 146 lb W₂ = 212 lb. P = 52 lb T= 28 lb P lb 5' 1.5' 0.8' W₂ lb W₁ lb COLLAPSE IMAGES N
The actual frictional force for equilibrium. lb ENTER 3 tries remaining. 1 point(s) possible The normal force of the refrigerator. lb ENTER 3 tries remaining. 1 point(s) possible The maximum frictional force. lb ENTER 3 tries remaining. 1 point(s) possible The distance of the center of gravity of the refrigerator relative to the left side of the refrigerator. ft ENTER 3 tries remaining. 1 point(s) possible The total tipping moment. lb.ft ENTER 3 tries remaining. 1 point(s) possible
The total resistive moment. ENTER 3 tries remaining. 1 point(s) possible The force T that will make the max frictional force 0. lb ENTER 3 tries remaining. 1 point(s) possible lb.ft
