A simple supported beam is shown in Figure 1. Determine the maximum tensile stress, and maximum compressive stress and t
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
A simple supported beam is shown in Figure 1. Determine the maximum tensile stress, and maximum compressive stress and t

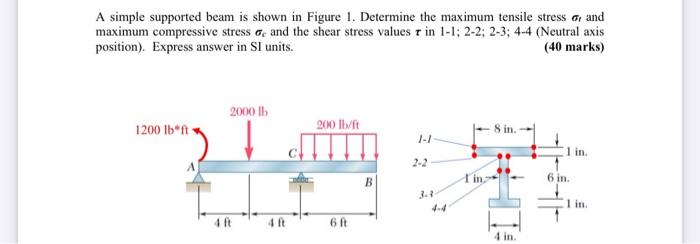

A simple supported beam is shown in Figure 1. Determine the maximum tensile stress, and maximum compressive stress and the shear stress values r in 1-1; 2-2; 2-3; 4-4 (Neutral axis position). Express answer in SI units. (40 marks) 2000 lb 200 lb/ft 1200 lb ft 8 in. 1-1 1 in. با " 4 ft 4 ft 6 ft B 2-2 3.3- 4-4 Tin FIF 4 in. 6 in. 1 in.
