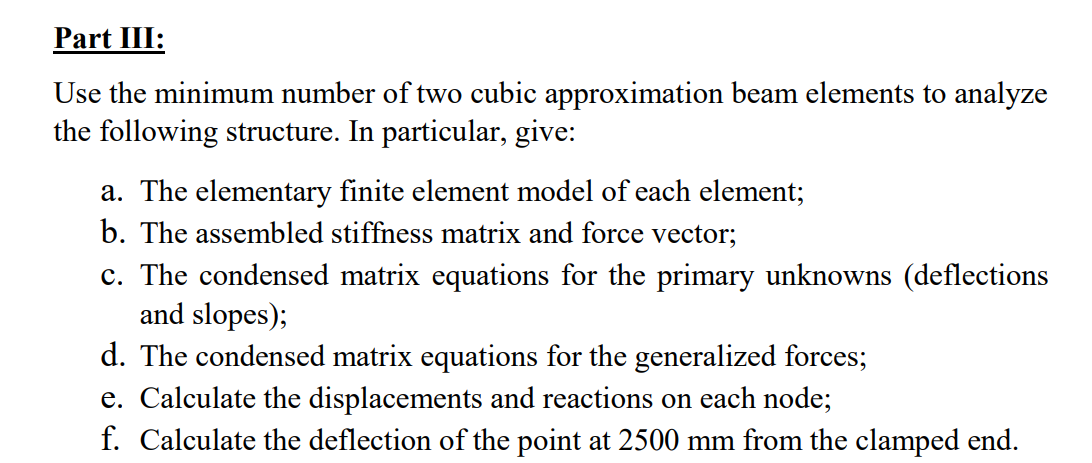

Part III: Use the minimum number of two cubic approximation beam elements to analyze the following structure. In particular, give: a. The elementary finite element model of each element; b. The assembled stiffness matrix and force vector; c. The condensed matrix equations for the primary unknowns (deflections and slopes); d. The condensed matrix equations for the generalized forces; e. Calculate the displacements and reactions on each node; f. Calculate the deflection of the point at 2500 mm from the clamped end.
↑ ·X 1 N/mm 5000 mm E = 2 × 105 MPa ; I = 106 N.mm 10⁹ mm 4 5000 mm 2500 N k = 20 N/mm
PART F
Part III: Use the minimum number of two cubic approximation beam elements to analyze the following structure. In particular, give: a. The elementary finite element model of each element; b. The assembled stiffness matrix and force vector; c. The condensed matrix equations for the primary unknowns (deflections and slopes); d. The condensed matrix equations for the generalized forces; e. Calculate the displacements and reactions on each node; f. Calculate the deflection of the point at 2500 mm from the clamped end.
↑ ·X 1 N/mm 5000 mm E = 2 × 105 MPa ; I = 106 N.mm 10⁹ mm 4 5000 mm 2500 N k = 20 N/mm
