Assignment 1. A Munchlax is standing on the brick wall that is placed on top of a 6-meter beam. Draw an M-V diagram for

Post by answerhappygod »

Assignment 1 A Munchlax Is Standing On The Brick Wall That Is Placed On Top Of A 6 Meter Beam Draw An M V Diagram For 1
Assignment 1 A Munchlax Is Standing On The Brick Wall That Is Placed On Top Of A 6 Meter Beam Draw An M V Diagram For 1 (55.11 KiB) Viewed 29 times

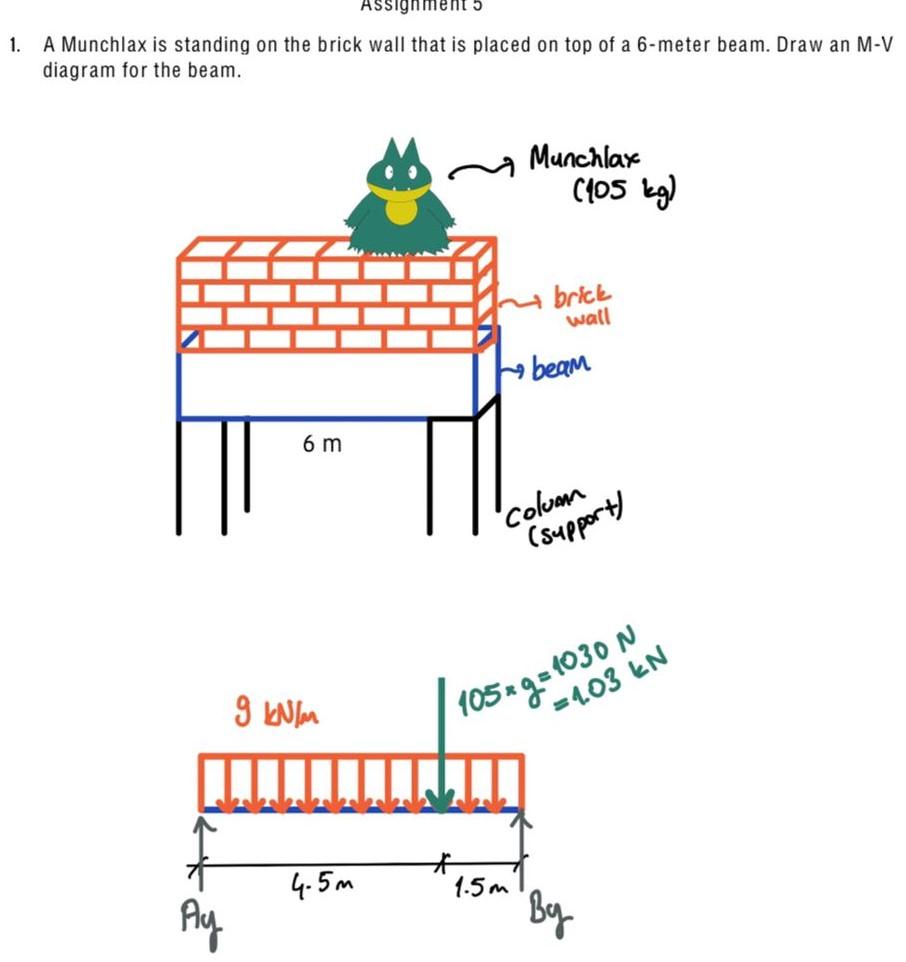

Assignment 1. A Munchlax is standing on the brick wall that is placed on top of a 6-meter beam. Draw an M-V diagram for the beam. Munchlax (105 kg) brick wall 6 m Ay 9 kN/m 4-5m beam Column (support) 105x g=1030 N =1.03 EN 1.5m By
