3. Both columns AB and DC have flexural rigidity EI, while beam BC has flexural rigidity 2EI. Using the slope-deflection

Post by answerhappygod »

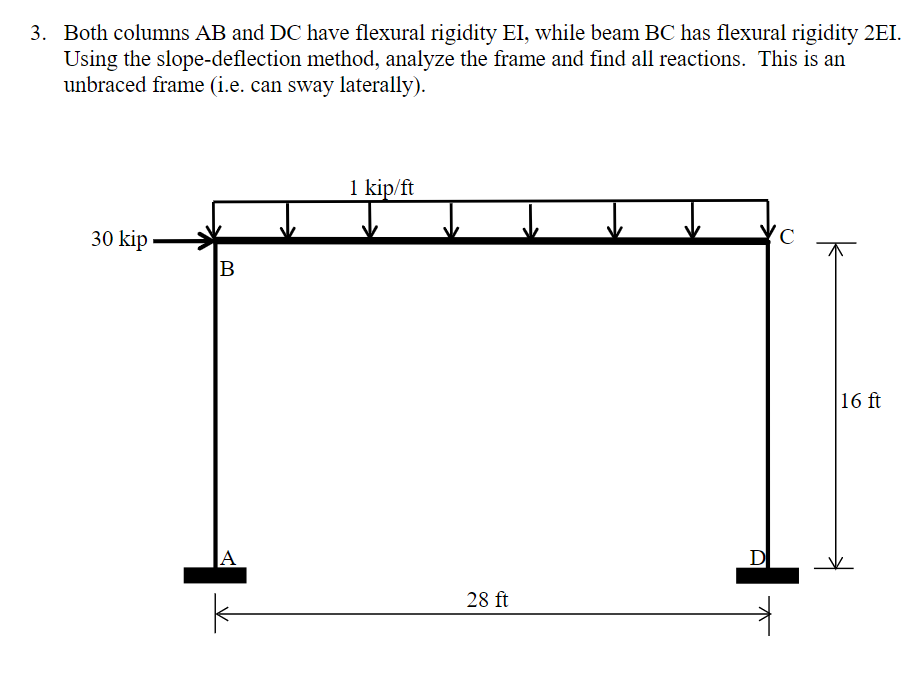

3 Both Columns Ab And Dc Have Flexural Rigidity Ei While Beam Bc Has Flexural Rigidity 2ei Using The Slope Deflection 1
3 Both Columns Ab And Dc Have Flexural Rigidity Ei While Beam Bc Has Flexural Rigidity 2ei Using The Slope Deflection 1 (39.7 KiB) Viewed 34 times
3. Both columns AB and DC have flexural rigidity EI, while beam BC has flexural rigidity 2EI. Using the slope-deflection method, analyze the frame and find all reactions. This is an unbraced frame (i.e. can sway laterally). 1 kip/ft C 30 kip B A 28 ft D 16 ft
