A 1 m diameter circular footing is supported on soil that has the properties indicated in the figure below. What design

Post by answerhappygod »

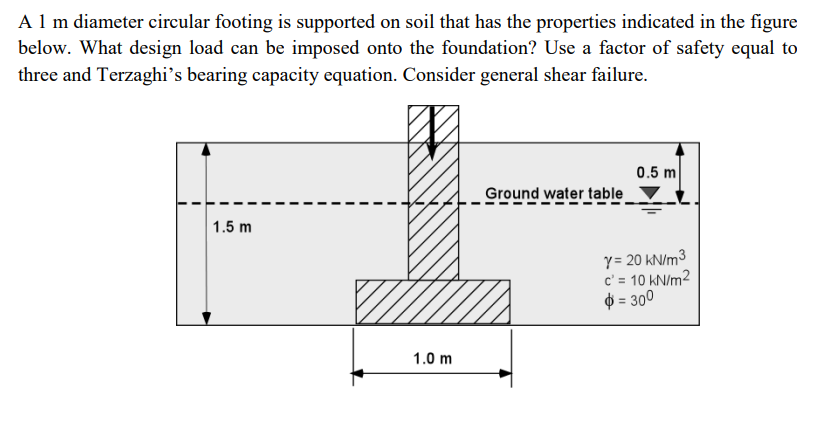

A 1 M Diameter Circular Footing Is Supported On Soil That Has The Properties Indicated In The Figure Below What Design 1
A 1 M Diameter Circular Footing Is Supported On Soil That Has The Properties Indicated In The Figure Below What Design 1 (59.87 KiB) Viewed 17 times
A 1 m diameter circular footing is supported on soil that has the properties indicated in the figure below. What design load can be imposed onto the foundation? Use a factor of safety equal to three and Terzaghi's bearing capacity equation. Consider general shear failure. 0.5 m Ground water table 1.5 m 1.0 m kN/m³ Y= 20 k c' = 10 kN/m² $ = 300
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
