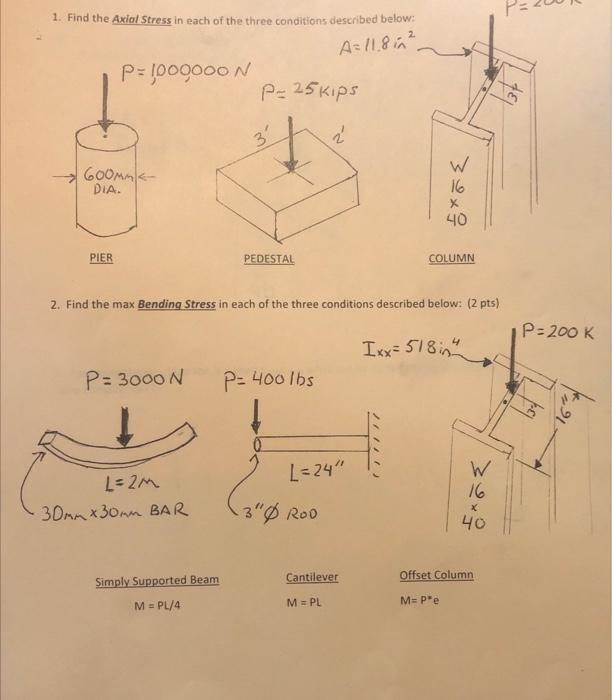

1. Find the Axial Stress in each of the three conditions described below: A=11.8 in² P= 1000000 N P= 25 kips 2 3 600mm DIA. W 16 X 40 PIER PEDESTAL COLUMN 2. Find the max Bending Stress in each of the three conditions described below: (2 pts) Ixx=518in P= 3000 N P= 400 lbs L=2M 30mmx30mm BAR Simply Supported Beam M=PL/4 L=24" 3"Ø ROD Cantilever M = PL ////) W 16 X 40 Offset Column M= Pre P=200 K
