DEFLECTIONS IN BEAMS USING MOMENT AREA METHOD:
Given the beam, determine the following:
For simply supported beams and overhanging beams:
(a) location of the maximum deflection from left end of beam
(b) maximum EIy value
(c) EIy value at the midspan

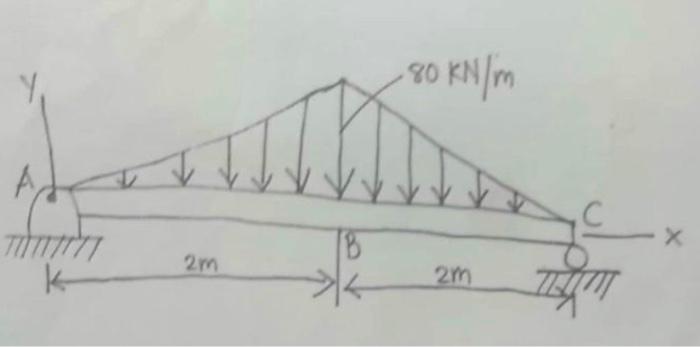

Deflections In Beams Using Moment Area Method Given The Beam Determine The Following For Simply Supported Beams And O 1
Deflections In Beams Using Moment Area Method Given The Beam Determine The Following For Simply Supported Beams And O 1 (14.44 KiB) Viewed 51 times
TOMT 2m 18 10 kN/m 2m 80 x
