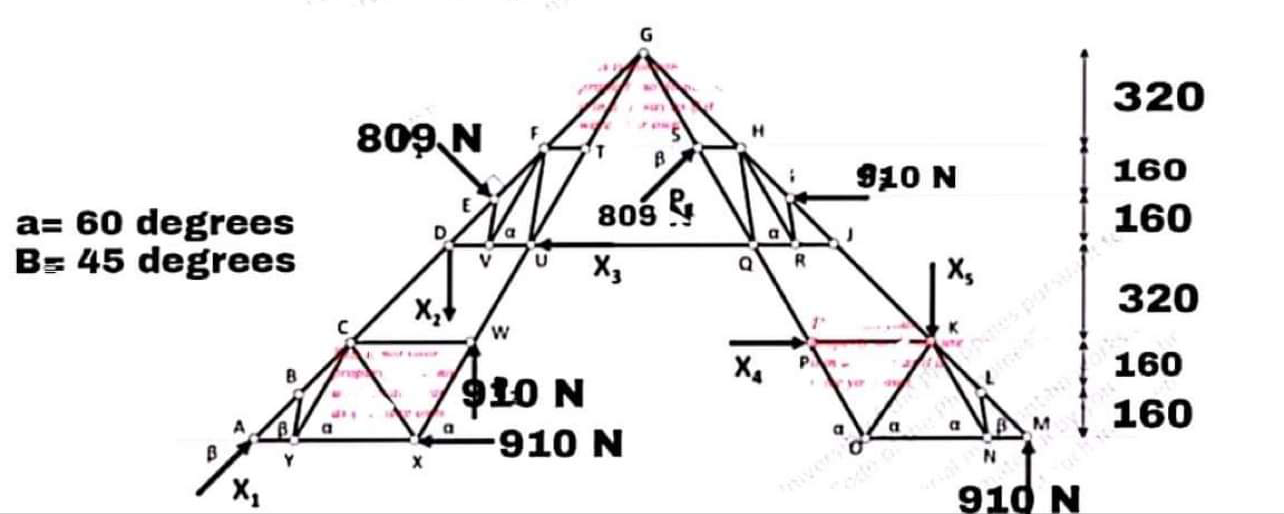

For the given truss:
Determine all the zero-force members.
Use the method of section to find the force in members QU and
TU
Use the method of joints to find the force in members OK and
SH
Draw all necessary free-body diagrams.
Indicate whether the forces are in tension or in compression
a= 60 degrees B= 45 degrees B X₁ 809 N X₂ Vour 415 X a V U X3 W $10 N 809 PET B -910 N H a haver 9100 N yor a X₂ des a M N 910 N 320 160 160 320 160 160
