P13.11-P13.15 The strain components £, E, and Yay are given for a point in a body subjected to plane strain. Determine t

[answerhappygod]

P13 11 P13 15 The Strain Components E And Yay Are Given For A Point In A Body Subjected To Plane Strain Determine T 1 (42.57 KiB) Viewed 20 times

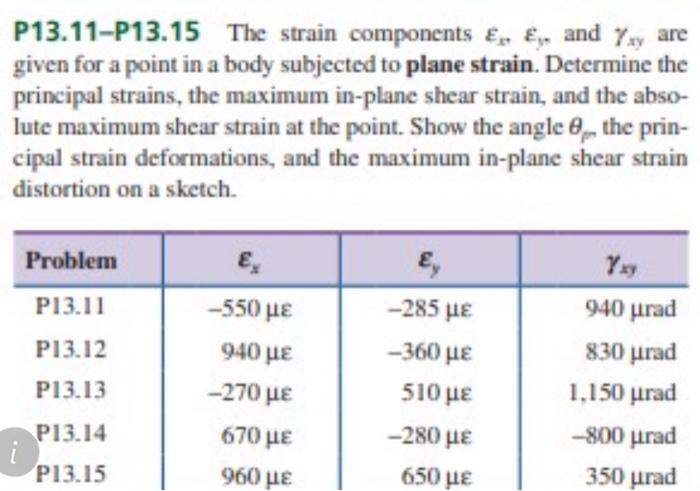

P13.11-P13.15 The strain components £, E, and Yay are given for a point in a body subjected to plane strain. Determine the principal strains, the maximum in-plane shear strain, and the abso- lute maximum shear strain at the point. Show the angle 8, the prin- cipal strain deformations, and the maximum in-plane shear strain distortion on a sketch. Problem E E, –285 με 940 μrad P13.11 –550 με -360 με 830 μrad P13.12 940 με 510 με 1,150 urad P13.13 −270 με 280 με -800 μrad P13.14 670 με 650 με 350 μrad P13.15 960 με
