Water at T=21 °C flows through the pipe system shown below at 8 L/s. What are the head losses between points 1 & 2 and 1

[answerhappygod]

Water At T 21 C Flows Through The Pipe System Shown Below At 8 L S What Are The Head Losses Between Points 1 2 And 1 1 (217.14 KiB) Viewed 17 times

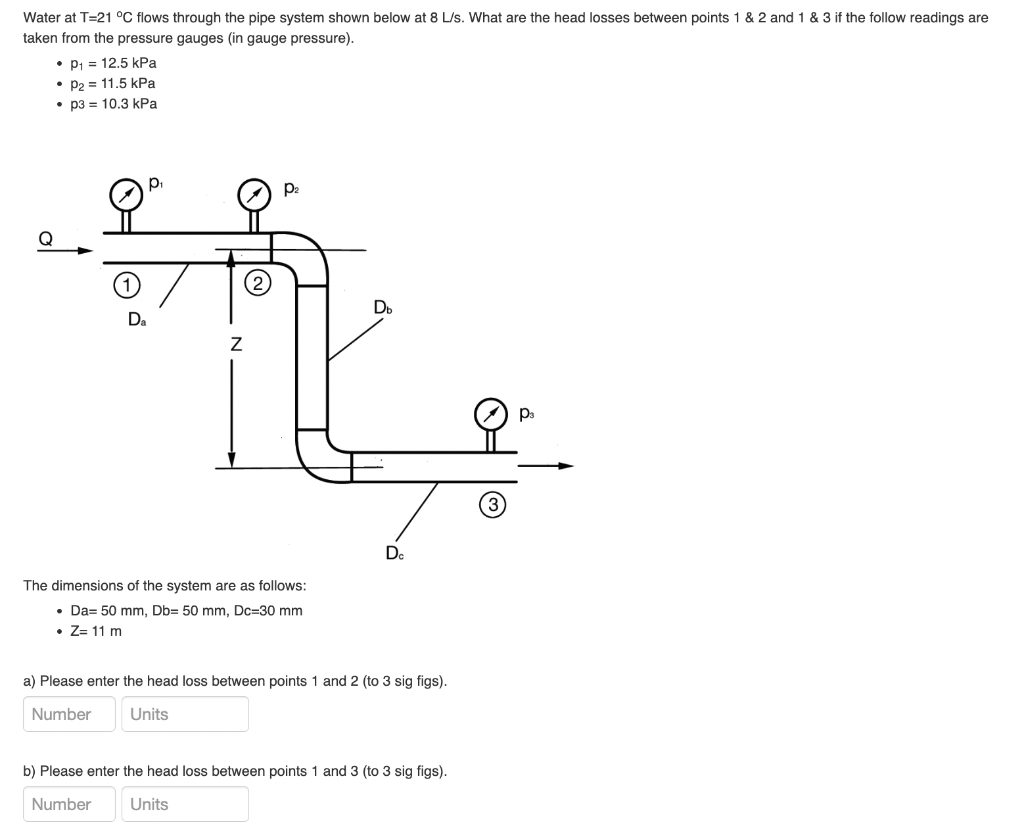

Water at T=21 °C flows through the pipe system shown below at 8 L/s. What are the head losses between points 1 & 2 and 1 & 3 if the follow readings are taken from the pressure gauges (in gauge pressure). * p1 = 12.5 kPa * P2 = 11.5 kPa * p3 = 10.3 kPa P₁ Db Da Z Da The dimensions of the system are as follows: • Da= 50 mm, Db= 50 mm, Dc=30 mm * Z= 11 m a) Please enter the head loss between points 1 and 2 (to 3 sig figs). Number Units b) Please enter the head loss between points 1 and 3 (to 3 sig figs). Number Units @
