Question 1 4 pts Design a retaining wall. Required strength of the wall U = 0.9D + 1.7E. Where is D is Dead load and E i

[answerhappygod]

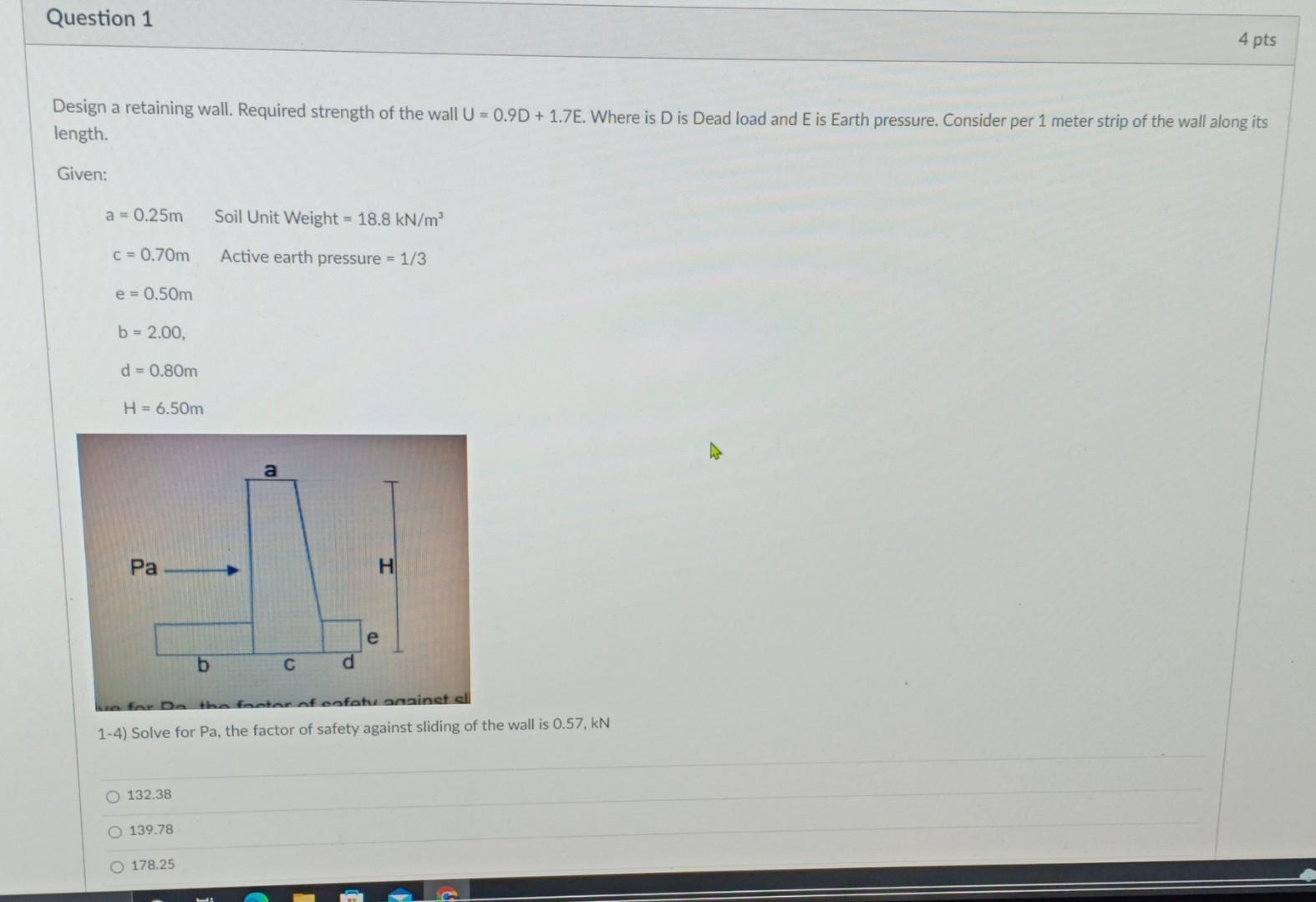

Question 1 4 Pts Design A Retaining Wall Required Strength Of The Wall U 0 9d 1 7e Where Is D Is Dead Load And E I 1 (88.99 KiB) Viewed 19 times

Question 1 4 pts Design a retaining wall. Required strength of the wall U = 0.9D + 1.7E. Where is D is Dead load and E is Earth pressure. Consider per 1 meter strip of the wall along its length. Given: a = 0.25m Soil Unit Weight = 18.8 kN/m³ c = 0.70m Active earth pressure = 1/3 e = 0.50m b = 2.00, d = 0.80m H = 6.50m Pa H e b C d the factor of safety against s 1-4) Solve for Pa, the factor of safety against sliding of the wall is 0.57, kN 132.38 O 139.78 O 178.25
