2.0 A simply supported steel beam of hollow rectangular section as shown has a clear span of 4.60m. This beam is simply

Post by answerhappygod »

2 0 A Simply Supported Steel Beam Of Hollow Rectangular Section As Shown Has A Clear Span Of 4 60m This Beam Is Simply 1
2 0 A Simply Supported Steel Beam Of Hollow Rectangular Section As Shown Has A Clear Span Of 4 60m This Beam Is Simply 1 (59.64 KiB) Viewed 18 times

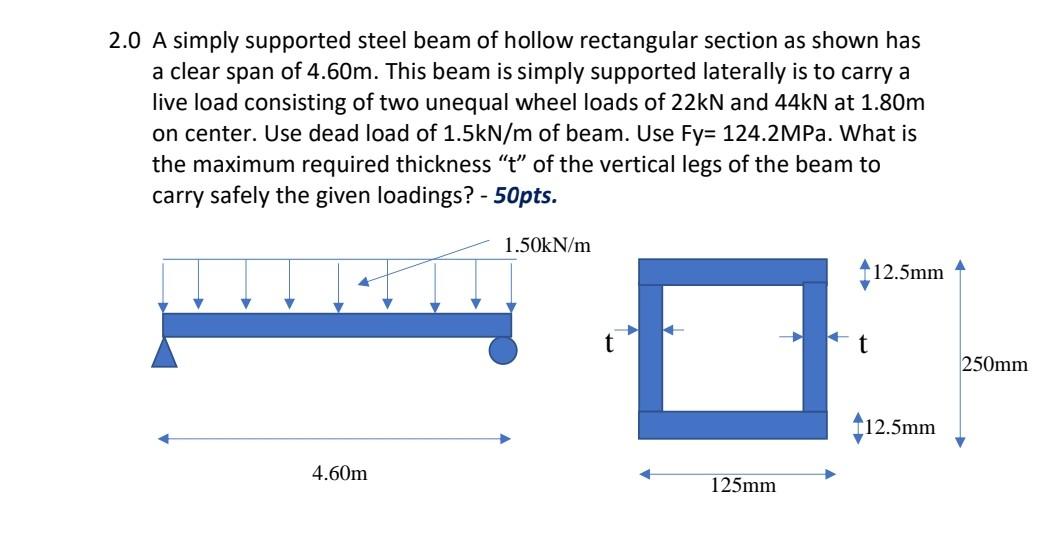

2.0 A simply supported steel beam of hollow rectangular section as shown has a clear span of 4.60m. This beam is simply supported laterally is to carry a live load consisting of two unequal wheel loads of 22kN and 44kN at 1.80m on center. Use dead load of 1.5kN/m of beam. Use Fy= 124.2MPa. What is the maximum required thickness "t" of the vertical legs of the beam to carry safely the given loadings? - 50pts. 1.50kN/m 12.5mm 12.5mm 4.60m 125mm 250mm
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
