From the beam shown. Let P = 40 kN, Q = 4 kN/m, L =8m. 1. Reaction at A. 2. Constant C1. 3. Slope at L/3. 4. Deflection

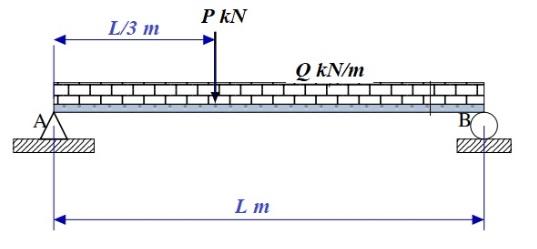

From the beam shown. Let P = 40 kN, Q = 4 kN/m, L =8m.
1. Reaction at A.
2. Constant C1.
3. Slope at L/3.
4. Deflection at L/3.
L/3 m PKN Lm QkN/m
1. Reaction at A.
2. Constant C1.
3. Slope at L/3.
4. Deflection at L/3.
L/3 m PKN Lm QkN/m
