A steel end plate (S275, thickness=10 mm) is used to connect a column and a beam as shown in Fig. 1. The connection for

[answerhappygod]

A Steel End Plate S275 Thickness 10 Mm Is Used To Connect A Column And A Beam As Shown In Fig 1 The Connection For 1 (67.63 KiB) Viewed 36 times

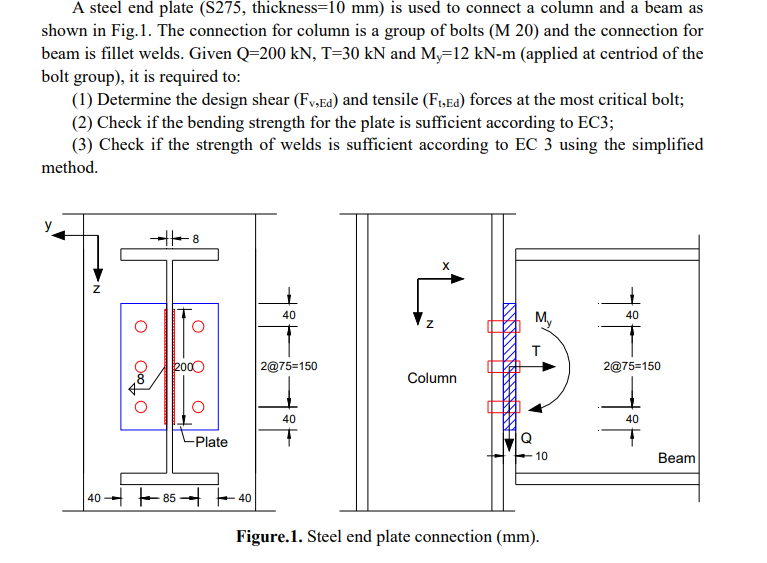

A steel end plate (S275, thickness=10 mm) is used to connect a column and a beam as shown in Fig. 1. The connection for column is a group of bolts (M 20) and the connection for beam is fillet welds. Given Q=200 kN, T=30 kN and My=12 kN-m (applied at centriod of the bolt group), it is required to: (1) Determine the design shear (Fv,Ed) and tensile (F₁,Ed) forces at the most critical bolt; (2) Check if the bending strength for the plate is sufficient according to EC3; (3) Check if the strength of welds is sufficient according to EC 3 using the simplified method. X 40 M₂ 40 2@75=150 2@75=150 40 40 O 8 2000 -Plate Z Column 10 Figure.1. Steel end plate connection (mm). 408540 T Q Beam
