Question 2 [25 Marks] A steel composite beam section is shown in Fig. 2. The beam is simply supported with a span of 6.5

Post by answerhappygod »

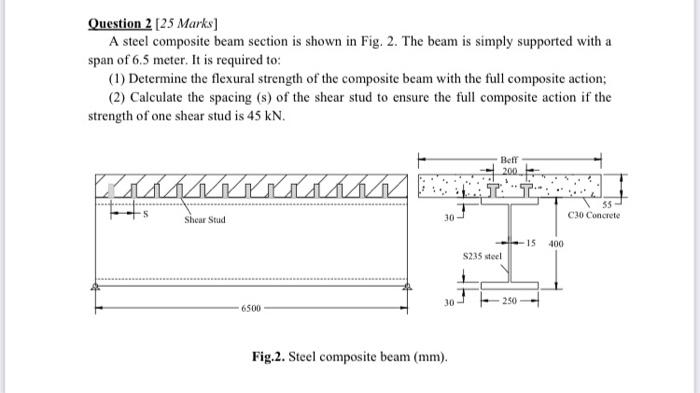

Question 2 25 Marks A Steel Composite Beam Section Is Shown In Fig 2 The Beam Is Simply Supported With A Span Of 6 5 1
Question 2 25 Marks A Steel Composite Beam Section Is Shown In Fig 2 The Beam Is Simply Supported With A Span Of 6 5 1 (30.79 KiB) Viewed 47 times
A steel composite beam section is shown in Fig. 2. The beam is simply supported with a
span of 6.5 meter. It is required to:
(1) Determine the flexural strength of the composite beam with the full composite action; (2) Calculate the spacing (s) of the shear stud to ensure the full composite action if the
strength of one shear stud is 45 kN.
Question 2 [25 Marks] A steel composite beam section is shown in Fig. 2. The beam is simply supported with a span of 6.5 meter. It is required to: (1) Determine the flexural strength of the composite beam with the full composite action; (2) Calculate the spacing (s) of the shear stud to ensure the full composite action if the strength of one shear stud is 45 kN. Beff 200 MARS 2 30- C30 Concrete Shear Stud 15 400 $235 steel 30- 6500 Fig.2. Steel composite beam (mm). 250
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
