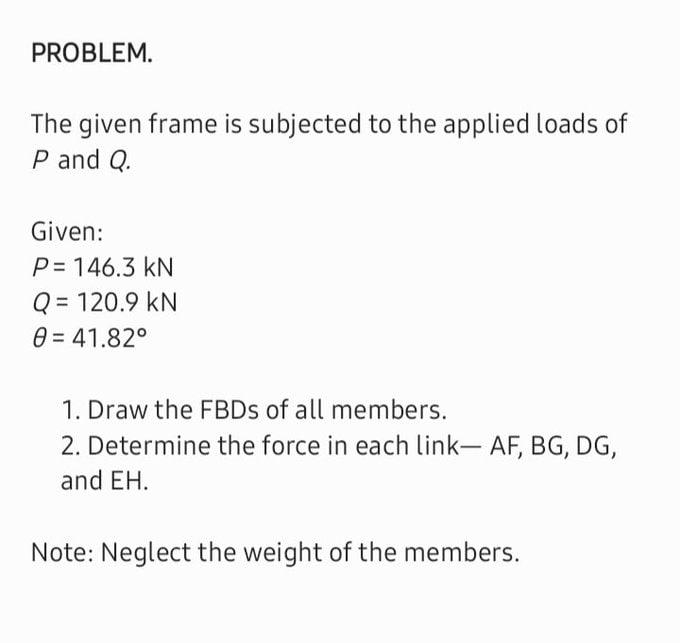

PROBLEM. The given frame is subjected to the applied loads of P and Q. Given: P=146.3 kN Q = 120.9 KN 0 = 41.82° 1. Draw the FBDs of all members. 2. Determine the force in each link- AF, BG, DG, and EH. Note: Neglect the weight of the members.

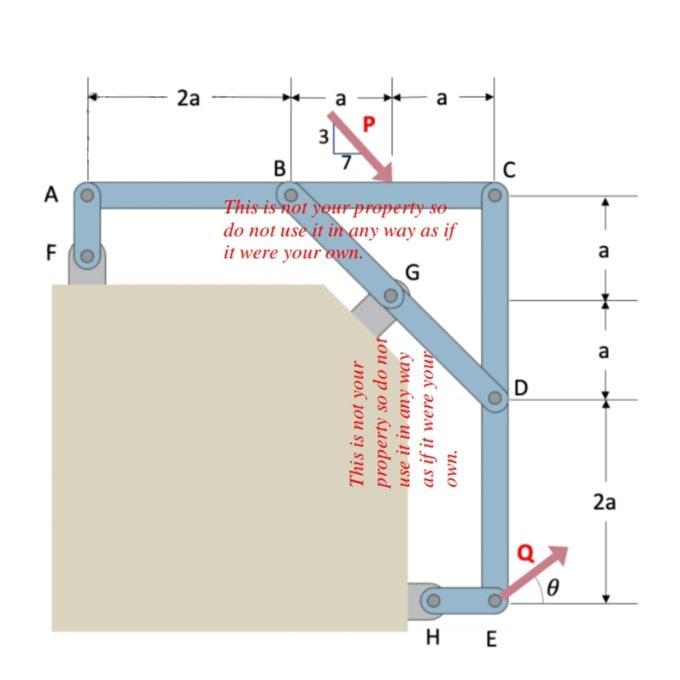

A F 2a a P 3 B This is not your property so do not use it in any way as if it were your own. G This is not your property so do not use it in any way as if it were your H UMO E C Ꮎ a 2a
