The strain components Ex, Ey, and Yxy are given for a point in a body subjected to plane strain. Using Mohr's circle, de

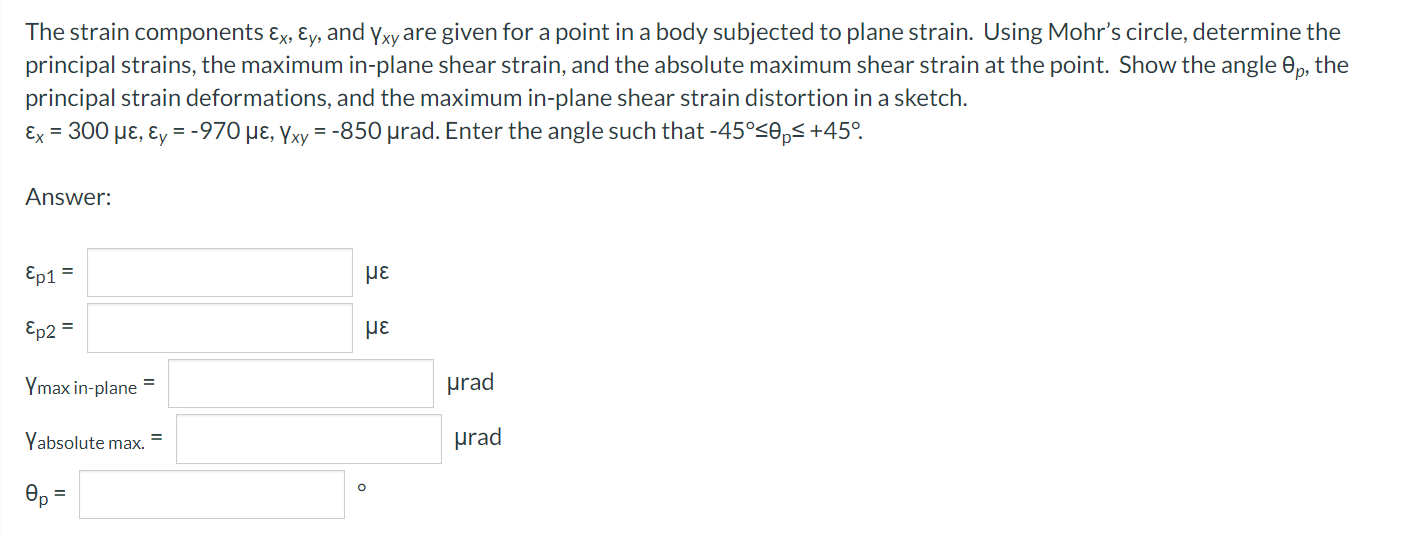

The strain components Ex, Ey, and Yxy are given for a point in a body subjected to plane strain. Using Mohr's circle, determine the principal strains, the maximum in-plane shear strain, and the absolute maximum shear strain at the point. Show the angle 8p, the principal strain deformations, and the maximum in-plane shear strain distortion in a sketch. Ex = 300 με, Ey = -970 με, Yxy = -850 µrad. Enter the angle such that -45°<0p≤ +45°. Answer: Ep1 = με Ep2 = με Ymax in-plane Yabsolute max. = Өр = = urad urad
