HELP ASAP

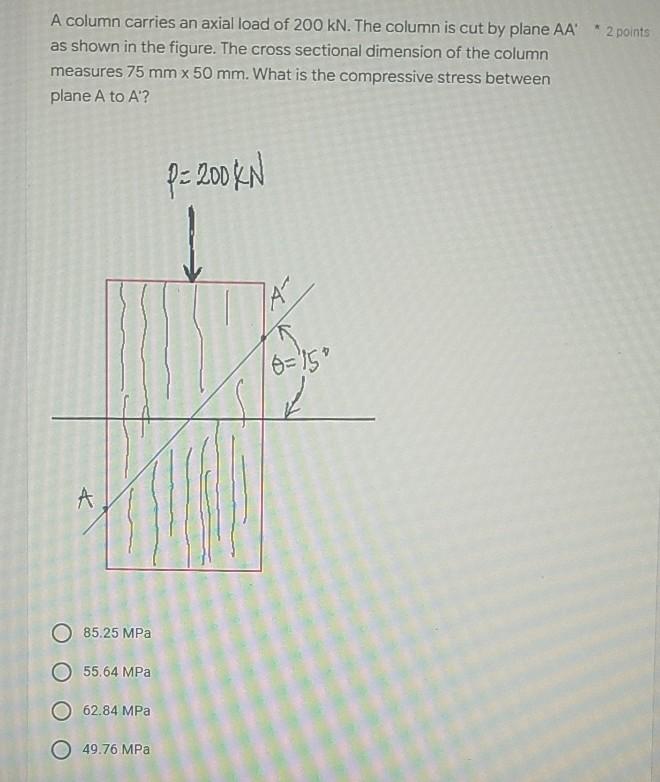

A column carries an axial load of 200 kN. The column is cut by plane AA' * 2 points as shown in the figure. The cross sectional dimension of the column measures 75 mm x 50 mm. What is the compressive stress between plane A to A'? P=200KN * 85.25 MPa 55.64 MPa 62.84 MPa 49.76 MPa 6=15°
