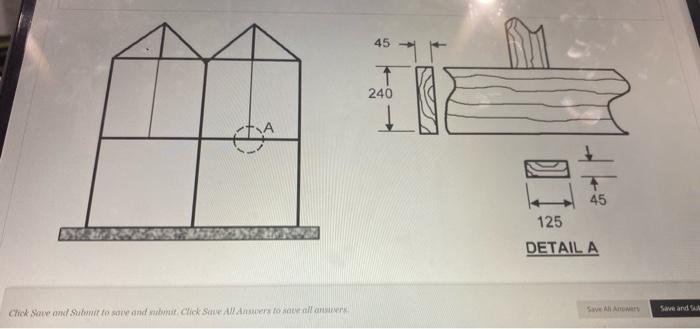

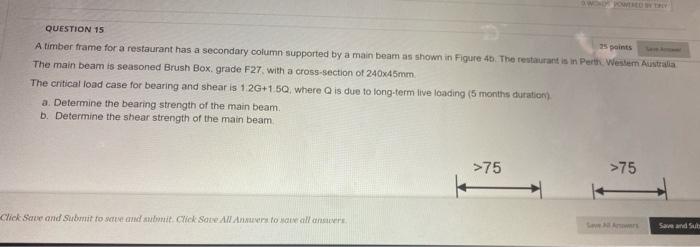

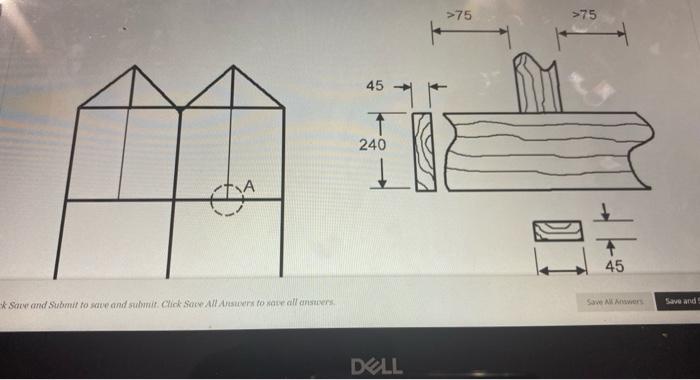

QUESTION 15 25 points See A A timber frame for a restaurant has a secondary column supported by a main beam as shown in Figure 4b. The restaurant is in Perth, Western Australia The main beam is seasoned Brush Box. grade F27, with a cross-section of 240x45mm The critical load case for bearing and shear is 1.2G+1.50, where Q is due to long-term live loading (5 months duration) a. Determine the bearing strength of the main beam. b. Determine the shear strength of the main beam >75 >75 Click Save and Submit to save and submit. Click Save All Answers to save all answers. Save All Arowers Save and Subs
A k Save and Submit to save and submit. Click Save All Answers to save all answers. 45 240 1 DELL >75 >75 + 45 Save All Answers Save and 5
Click Save and Submit to save and submit. Click Save All Answers to save all answers 45 ↑ 240 45 125 DETAIL A Save All Arowary Save and Suk
