QUESTION 14 The construction of a hall in Adelaide, South Australia uses timber framing. The frame system is shown in Fi

[answerhappygod]

Question 14 The Construction Of A Hall In Adelaide South Australia Uses Timber Framing The Frame System Is Shown In Fi 1 (57.65 KiB) Viewed 40 times

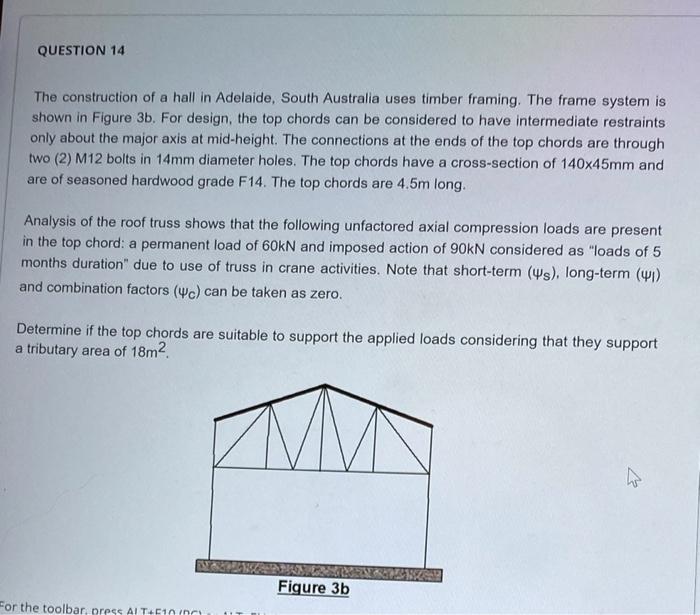

QUESTION 14 The construction of a hall in Adelaide, South Australia uses timber framing. The frame system is shown in Figure 3b. For design, the top chords can be considered to have intermediate restraints only about the major axis at mid-height. The connections at the ends of the top chords are through two (2) M12 bolts in 14mm diameter holes. The top chords have a cross-section of 140x45mm and are of seasoned hardwood grade F14. The top chords are 4.5m long. Analysis of the roof truss shows that the following unfactored axial compression loads are present in the top chord: a permanent load of 60kN and imposed action of 90kN considered as "loads of 5 months duration" due to use of truss in crane activities. Note that short-term (s), long-term (₁) and combination factors (c) can be taken as zero. Determine if the top chords are suitable to support the applied loads considering that they support a tributary area of 18m². Figure 3b For the toolbar, press Al T+F10(0) 27
