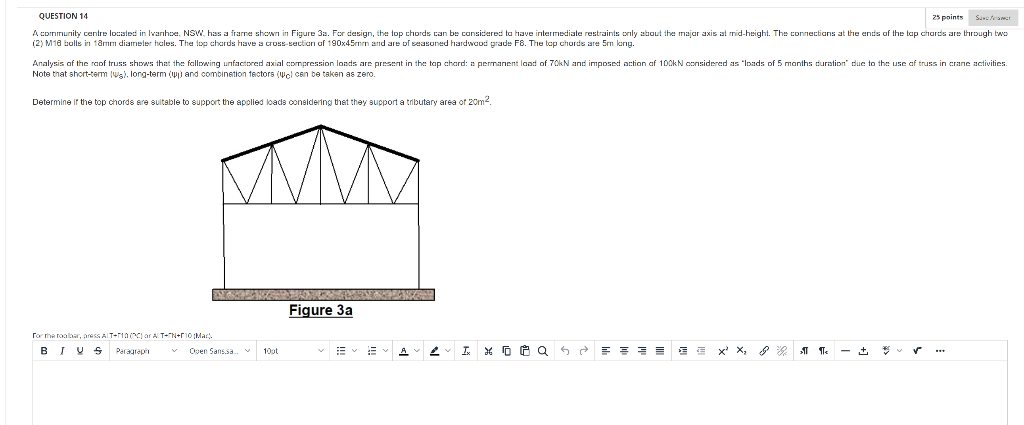

25 points S QUESTION 14 A community centre located in Ivanhoe, NSW, has a frame shown in Figure 3a. For design, the top chords can be considered to have intermediate restraints only about the major axis at mid-height. The connections at the ends of the top chords are through two (2) M18 bolls in 18mm diameter holes. The top chords have a cross-section of 190x45mm and are of seasoned hardwood grade F8. The top chords are 5m long. 100kN considered as "loads of 5 months duration due to the use of truss in crane activities. Analysis of the roof truss shows that the following unfactored axial compression loads are present in the top chard: a permanent load of 70kN and imposed action Note that short-term (ws), long-term (₁) and combination factors (We) can be taken as zero. Determine if the top chords are suitable to support the applied loads considering that they support a tributary area of 20m2. NESTLE NORME Figure 3a For the toolbar, press ALT-10 () or ALT+TN+F 10 (Mad BIVS Paragraph 10pt T - ± ✔ ✔... Open Sanssa.. 4 IX Q
