2a AO FO The given frame is subjected to the applied loads P and Q. Note that members ABC and CDE are pin-connected at C

[answerhappygod]

2a Ao Fo The Given Frame Is Subjected To The Applied Loads P And Q Note That Members Abc And Cde Are Pin Connected At C 1 (75.44 KiB) Viewed 35 times

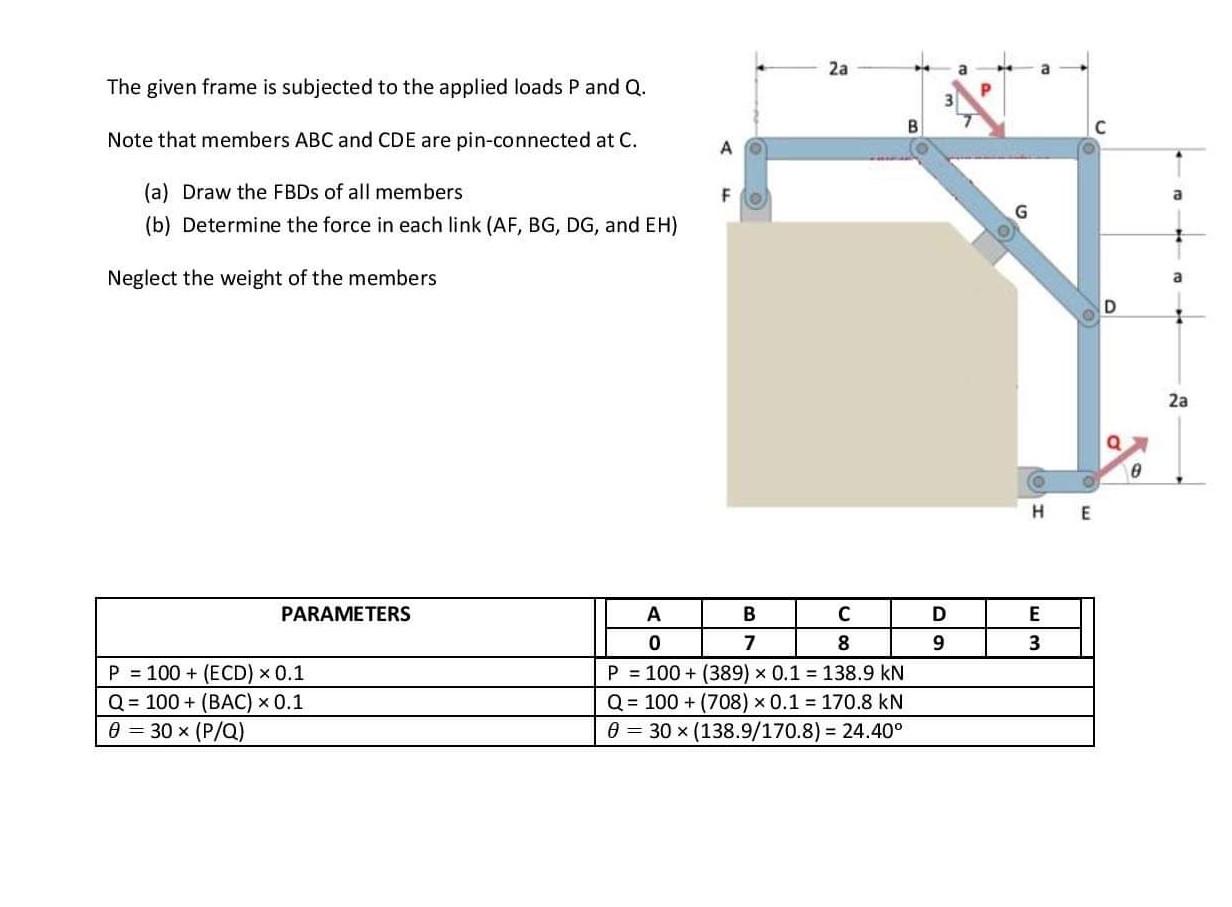

2a AO FO The given frame is subjected to the applied loads P and Q. Note that members ABC and CDE are pin-connected at C. (a) Draw the FBDs of all members (b) Determine the force in each link (AF, BG, DG, and EH) Neglect the weight of the members. PARAMETERS A B C 0 7 8 P = 100+ (ECD) x 0.1 Q= 100+ (BAC) * 0.1 0 = 30 x (P/Q) P = 100+ (389) x 0.1 = 138.9 KN Q = 100+ (708) x 0.1 = 170.8 kN 0 30 x (138.9/170.8) = 24.40⁰ B D 9 G HE E 3 C D 0 2a
