V1 10v Hilt R1 Ra 200 R2 M 20 60 Rs 200 Holl V3 12v 3 V2 12v 20 Fig 1 This Circuit Contains Three Voltage Sources Whe 1 (40.87 KiB) Viewed 43 times
V1 10v Hilt R1 Ra 200 R2 M 20 60 Rs 200 Holl V3 12v 3 V2 12v 20 Fig 1 This Circuit Contains Three Voltage Sources Whe 2 (30.18 KiB) Viewed 43 times

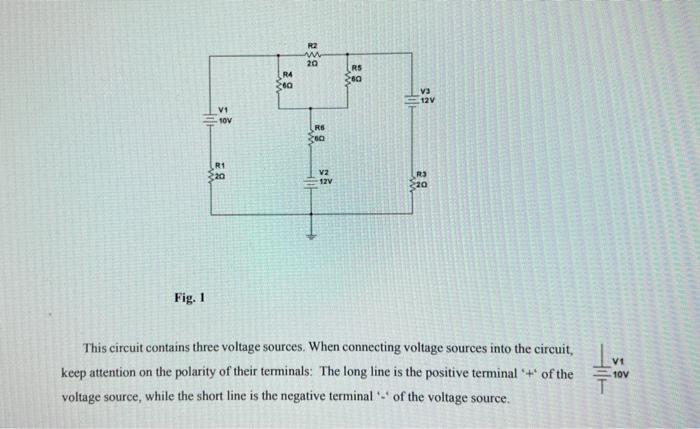

V1 -10V Hilt R1 RA 200 R2 m 20 60 RS 200 Holl V3 12V 3 V2 12V 20 Fig. 1 This circuit contains three voltage sources. When connecting voltage sources into the circuit, Iv keep attention on the polarity of their terminals: The long line is the positive terminal '+' of the voltage source, while the short line is the negative terminal of the voltage source. mold V1 -10V Hilt

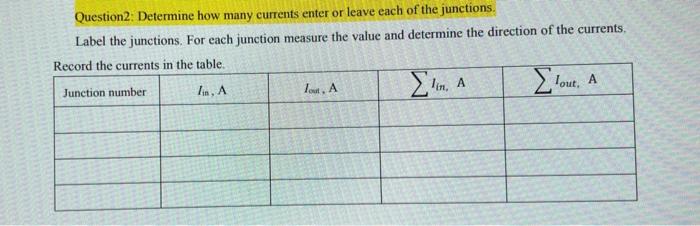

Question2: Determine how many currents enter or leave each of the junctions. Label the junctions. For each junction measure the value and determine the direction of the currents. Record the currents in the table. Junction number lin, A lot, A in. A lout, A
