4) The circuit below contains 2 batteries and 1 resistor. el = 12 V, e2 = 8 V, rl = 1 W, r2 = 1 W, R3 = 8 W. a) What is

[answerhappygod]

4 The Circuit Below Contains 2 Batteries And 1 Resistor El 12 V E2 8 V Rl 1 W R2 1 W R3 8 W A What Is 1 (52.47 KiB) Viewed 37 times

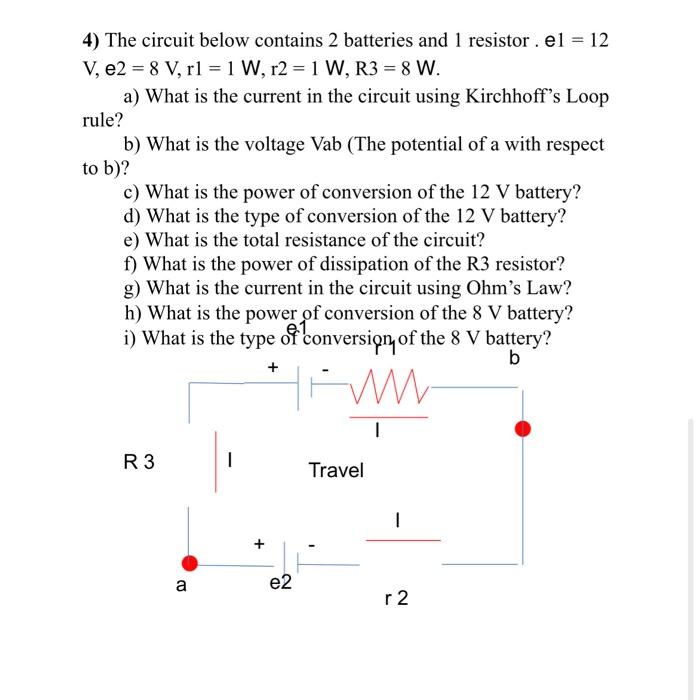

4) The circuit below contains 2 batteries and 1 resistor. el = 12 V, e2 = 8 V, rl = 1 W, r2 = 1 W, R3 = 8 W. a) What is the current in the circuit using Kirchhoff's Loop rule? b) What is the voltage Vab (The potential of a with respect to b)? c) What is the power of conversion of the 12 V battery? d) What is the type of conversion of the 12 V battery? e) What is the total resistance of the circuit? f) What is the power of dissipation of the R3 resistor? g) What is the current in the circuit using Ohm's Law? h) What is the power of conversion of the 8 V battery? i) What is the type of conversion of the 8 V battery? b + MW- | R 3 1 a + e2 Travel r2
