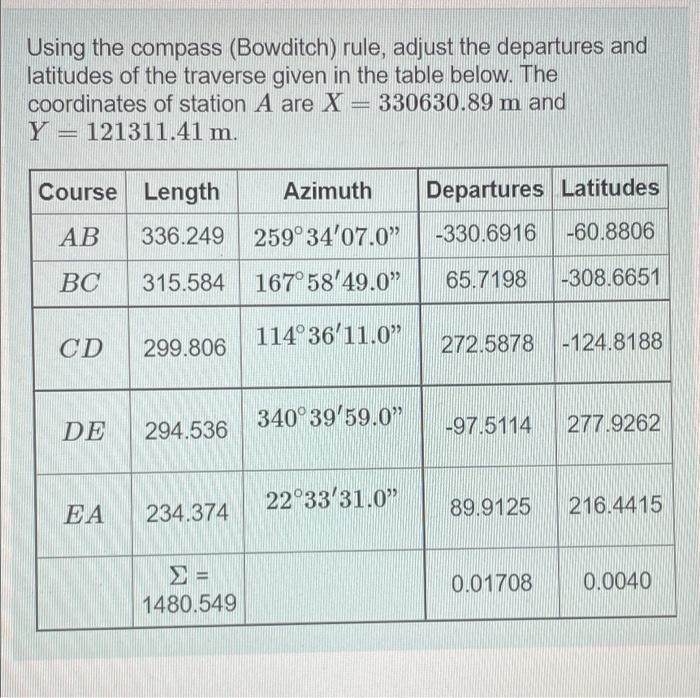

Using the compass (Bowditch) rule, adjust the departures and latitudes of the traverse given in the table below. The coordinates of station A are X - 330630.89 m and Y 121311.41 m. Course Length Azimuth Departures Latitudes AB 336.249 259°34′07.0" -330.6916 -60.8806 BC 315.584 167° 58'49.0" 65.7198 -308.6651 114°36′11.0" CD 299.806 272.5878 -124.8188 340°39'59.0" DE 294.536 -97.5114 277.9262 22°33'31.0" EA 234.374 89.9125 216.4415 Σ= 1480.549 0.01708 0.0040

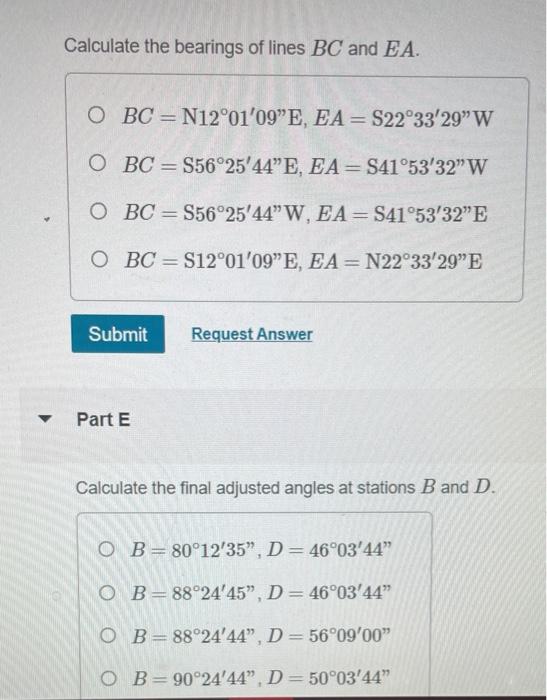

Calculate the bearings of lines BC and EA. O BC= N12°01'09"E, EA = S22°33′29"W O BC=S56°25'44"E, EA = S41°53'32"W O BC=S56°25'44" W, EA = S41°53'32"E O BC=S12°01'09"E, EA = N22°33′29″E Submit Request Answer Part E Calculate the final adjusted angles at stations B and D. OB=80°12'35", D = 46°03'44" OB 88°24'45", D = 46°03'44" OB 88°24'44", D= 56°09'00" - O B=90°24'44", D = 50°03'44"
