D Question 7 A 2-ft rod with a modulus of elasticity of 8840 ksi, is subjected to a tensile force of 1000 lb and has an

[answerhappygod]

D Question 7 A 2 Ft Rod With A Modulus Of Elasticity Of 8840 Ksi Is Subjected To A Tensile Force Of 1000 Lb And Has An 1 (17.69 KiB) Viewed 39 times

Match A, B, and C with the loc 1, loc 2, and loc 3.

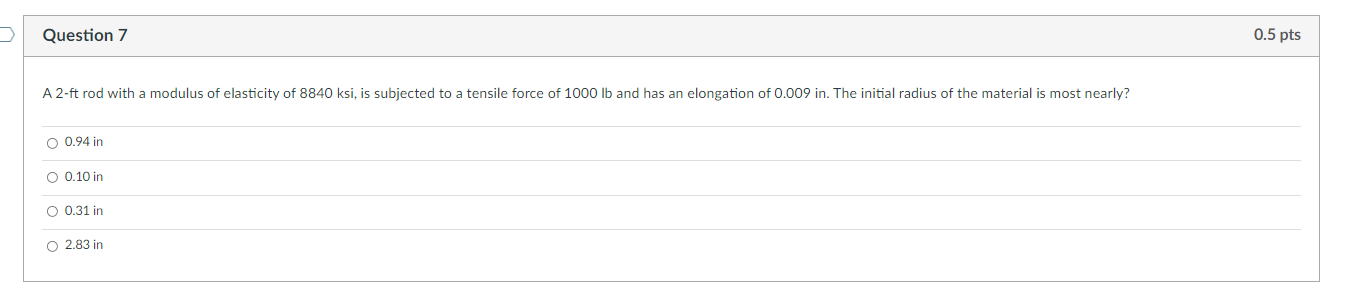

D Question 7 A 2-ft rod with a modulus of elasticity of 8840 ksi, is subjected to a tensile force of 1000 lb and has an elongation of 0.009 in. The initial radius of the material is most nearly? O 0.94 in O 0.10 in O 0.31 in O 2.83 in 0.5 pts
D Question 8 Which of the following locations matches the (load-strain) plot? Non Uniform Section 6000 5000 4000 3000 2000 1000 0 1000 1500 A B Load (lbf) 0 500 Micro-strain 2000 2500 1 1 1 2.5 0.25 R Loč. 3 (top) Loc. 2 (middle) Loc. 1 (bottom) 0.75" R T Tapered specimen [Choose ] [Choose ] [Choose ] 0.75 pts
