Solve the frame shown using Portal method: a) Assume columns and beams have A = 50 in^2, and I = 60 in^4, Draw Shear & B

Post by answerhappygod »

Solve the frame shown using Portal method:
a) Assume columns and beams have A = 50 in^2, and I = 60 in^4,
Draw Shear & Bending moment diagrams, and show overall frame
deflection

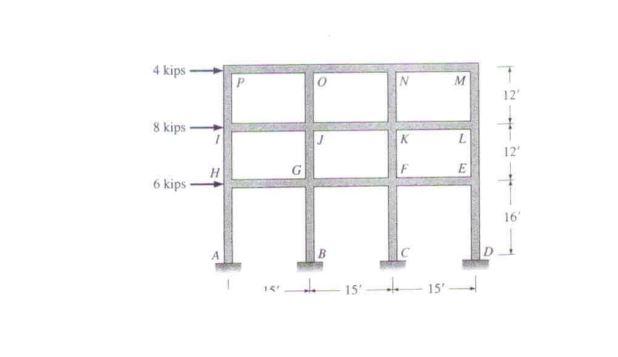

Solve The Frame Shown Using Portal Method A Assume Columns And Beams Have A 50 In 2 And I 60 In 4 Draw Shear B 1
Solve The Frame Shown Using Portal Method A Assume Columns And Beams Have A 50 In 2 And I 60 In 4 Draw Shear B 1 (12.61 KiB) Viewed 31 times
4 kips 8 kips 6 kips 7 MALEFORGE 16' S 15' 1 X 15' 16
