Problem 3 The assembly consists of a cantilevered beam CB and a simply supported beam AB. If each beam is made of A-36 s

Post by answerhappygod »

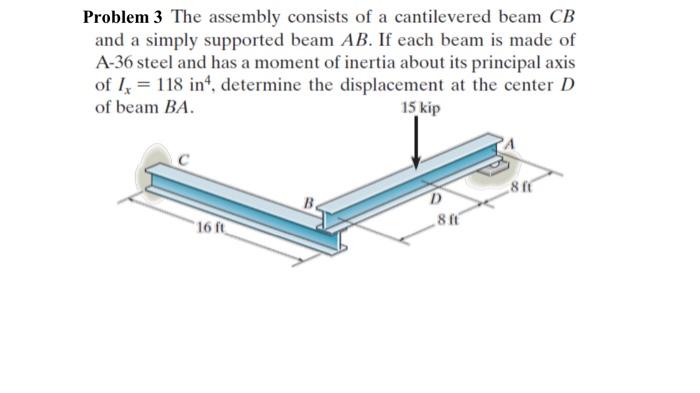

Problem 3 The Assembly Consists Of A Cantilevered Beam Cb And A Simply Supported Beam Ab If Each Beam Is Made Of A 36 S 1
Problem 3 The Assembly Consists Of A Cantilevered Beam Cb And A Simply Supported Beam Ab If Each Beam Is Made Of A 36 S 1 (23.91 KiB) Viewed 47 times
Problem 3 The assembly consists of a cantilevered beam CB and a simply supported beam AB. If each beam is made of A-36 steel and has a moment of inertia about its principal axis of I, 118 in4, determine the displacement at the center D of beam BA. 15 kip 8 ff B 16 ft D 8 ft
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
