A cable-stayed concrete mast is constructed to support heavy point loads. Find the reactions and displacements for the s

Post by answerhappygod »

A Cable Stayed Concrete Mast Is Constructed To Support Heavy Point Loads Find The Reactions And Displacements For The S 1
A Cable Stayed Concrete Mast Is Constructed To Support Heavy Point Loads Find The Reactions And Displacements For The S 1 (24.96 KiB) Viewed 31 times

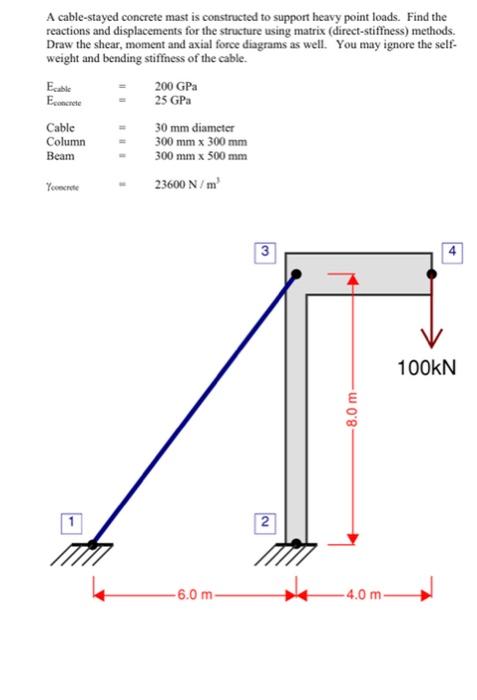

A cable-stayed concrete mast is constructed to support heavy point loads. Find the reactions and displacements for the structure using matrix (direct-stiffness) methods. Draw the shear, moment and axial force diagrams as well. You may ignore the self- weight and bending stiffness of the cable. Ecable 200 GPa Econcrete 25 GPa Cable Column 30 mm diameter 300 mm x 300 mm 300 mm x 500 mm Beam Yconcrete 23600 N/m² 1 -6.0 m- 3 2 8.0 m- 4.0 m- A 100KN
