The concrete "gravity" dam is held in place by its own weight (Figure 1). The density of concrete is Pc = 2.5 Mg/m³, and

[answerhappygod]

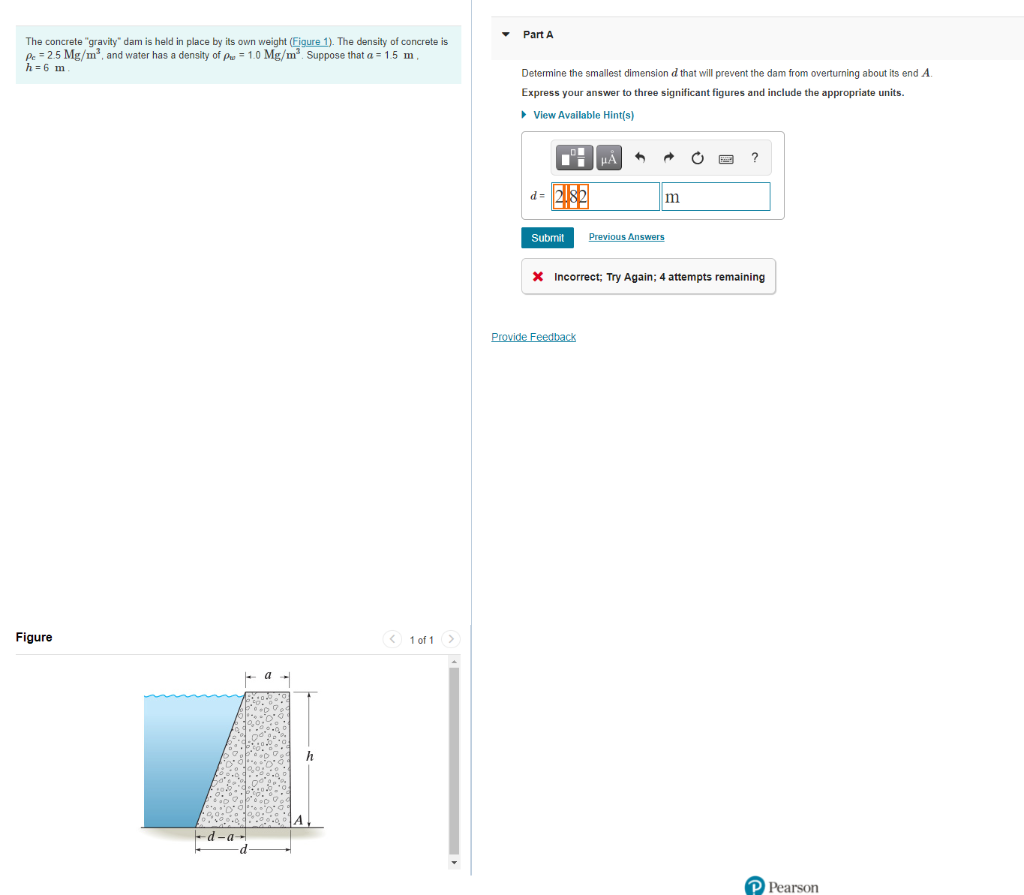

The Concrete Gravity Dam Is Held In Place By Its Own Weight Figure 1 The Density Of Concrete Is Pc 2 5 Mg M And 1 (89.62 KiB) Viewed 40 times

The concrete "gravity" dam is held in place by its own weight (Figure 1). The density of concrete is Pc = 2.5 Mg/m³, and water has a density of P = 1.0 Mg/m³. Suppose that a = 1.5 m. h=6 m. Figure -d-a- h < 1 of 1 > Part A Determine the smallest dimension d that will prevent the dam from overturning about its end A. Express your answer to three significant figures and include the appropriate units. ► View Available Hint(s) μA 4 O d= 2.82 Submit Previous Answers X Incorrect; Try Again; 4 attempts remaining Provide Feedback m P Pearson
