read carefully before you give an attempt

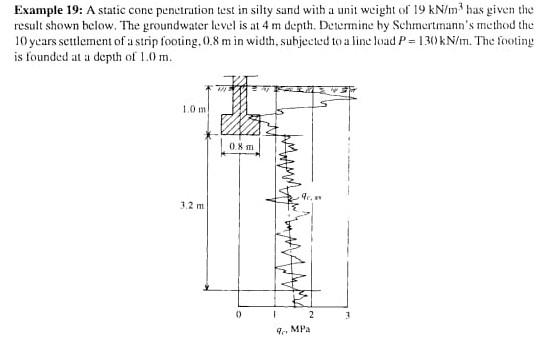

Example 19: A static cone penetration test in silty sand with a unit weight of 19 kN/m³ has given the result shown below. The groundwater level is at 4 m depth. Determine by Schmertmann's method the 10 years settlement of a strip footing, 0.8 m in width, subjected to a line load P= 130 kN/m. The footing is founded at a depth of 1.0 m. 1.0 m 3.2 m 0.8 m ( ретитор трами 9, 2 9 MPa 3
