4-10.
Determine the force in all members of the bride truss. State if the members are in tension or compression.
left question right answer
I need solution.
left question right answer
i need solution

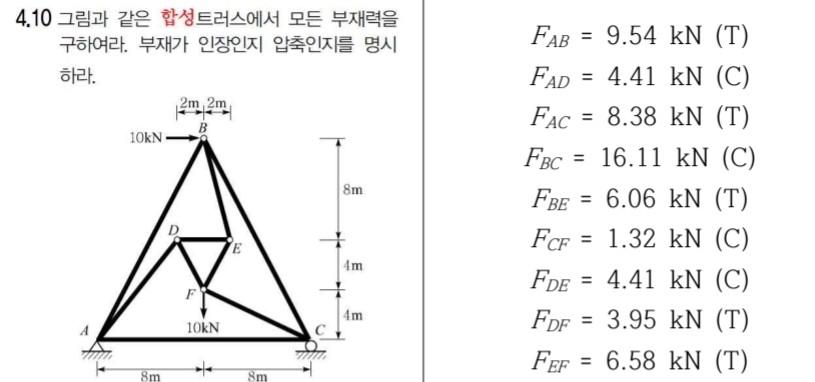

4.10 그림과 같은 합성트러스에서 모든 부재력을 구하여라. 부재가 인장인지 압축인자를 명시 하라. 2m 2m B 10kN 8m 4m 4m 8m 10kN E 8m FAB = 9.54 KN (T) FAD = 4.41 kN (C) FAC = 8.38 kN (T) FBC = 16.11 kN (C) FBE = 6.06 KN (T) FCF = 1.32 kN (C) FDE = 4.41 kN (C) FDF = 3.95 KN (T) FEF= 6.58 kN (T)
