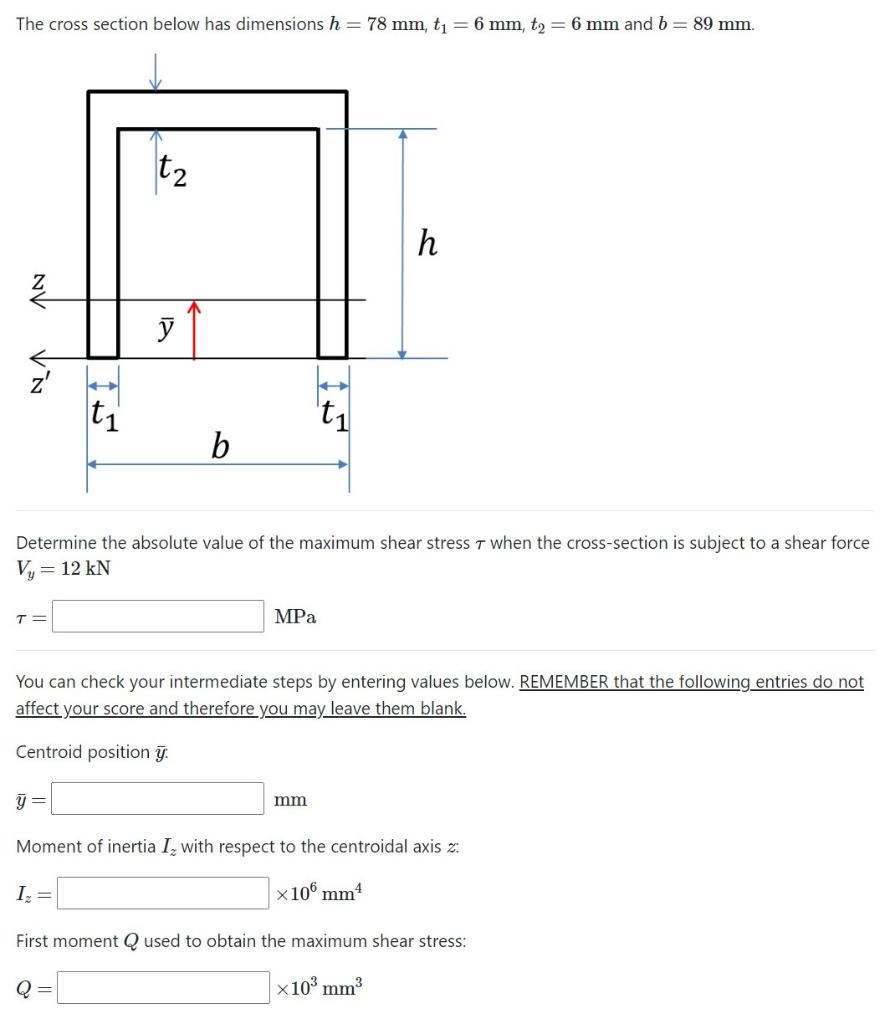

The cross section below has dimensions h = 78 mm, t₁ = 6 mm, t₂ = 6 mm and b = 89 mm. t₂ h t₁ t₁ b Determine the absolut

[answerhappygod]

The Cross Section Below Has Dimensions H 78 Mm T 6 Mm T 6 Mm And B 89 Mm T H T T B Determine The Absolut 1 (62.75 KiB) Viewed 20 times

The cross section below has dimensions h = 78 mm, t₁ = 6 mm, t₂ = 6 mm and b = 89 mm. t₂ h t₁ t₁ b Determine the absolute value of the maximum shear stress T when the cross-section is subject to a shear force V₂ = 12 kN T= MPa You can check your intermediate steps by entering values below. REMEMBER that the following entries do not affect your score and therefore you may leave them blank. Centroid position y y = mm Moment of inertia I, with respect to the centroidal axis z Iz ×106 mm4 = First moment Q used to obtain the maximum shear stress: Q x 10³ mm³ = VN I y
