A thin rod AD is mounted with bearings on either side to allow the system to spin. Two small rods are welded onto AB, ea

Post by answerhappygod »

A Thin Rod Ad Is Mounted With Bearings On Either Side To Allow The System To Spin Two Small Rods Are Welded Onto Ab Ea 1
A Thin Rod Ad Is Mounted With Bearings On Either Side To Allow The System To Spin Two Small Rods Are Welded Onto Ab Ea 1 (74.94 KiB) Viewed 25 times

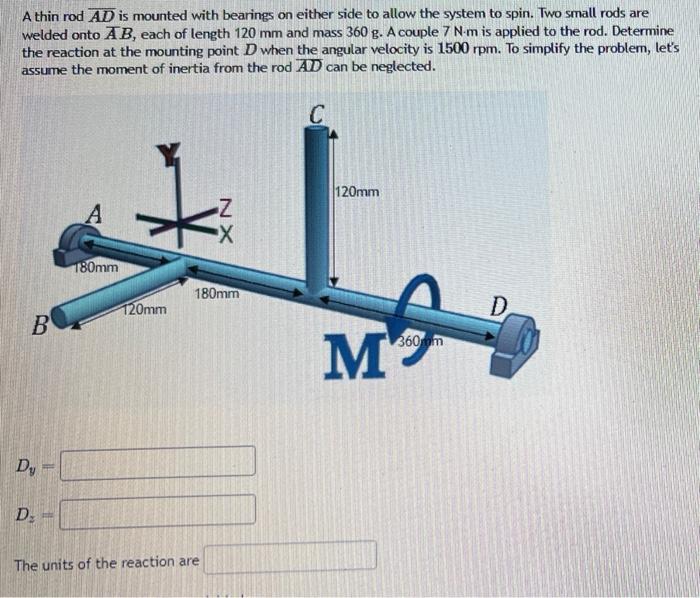

A thin rod AD is mounted with bearings on either side to allow the system to spin. Two small rods are welded onto AB, each of length 120 mm and mass 360 g. A couple 7 N-m is applied to the rod. Determine the reaction at the mounting point D when the angular velocity is 1500 rpm. To simplify the problem, let's assume the moment of inertia from the rod AD can be neglected. C 120mm 180mm M B CO 120mm Dy D₂ The units of the reaction are A U NX 180mm 360mm D
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
