Problem 10.6 only

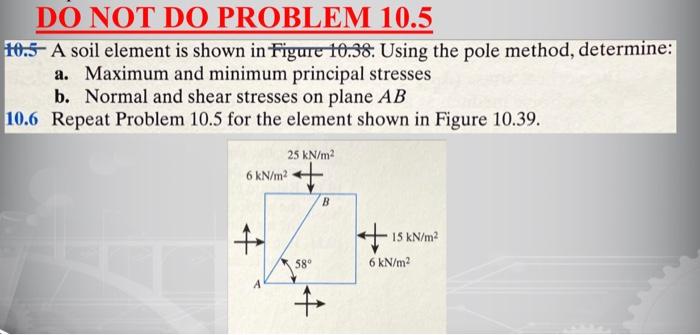

DO NOT DO PROBLEM 10.5 10.5- A soil element is shown in Figure 10.38. Using the pole method, determine: a. Maximum and minimum principal stresses b. Normal and shear stresses on plane AB 10.6 Repeat Problem 10.5 for the element shown in Figure 10.39. 25 kN/m² 6 kN/m² B 15 kN/m² 58° 4 +1 6 kN/m²
