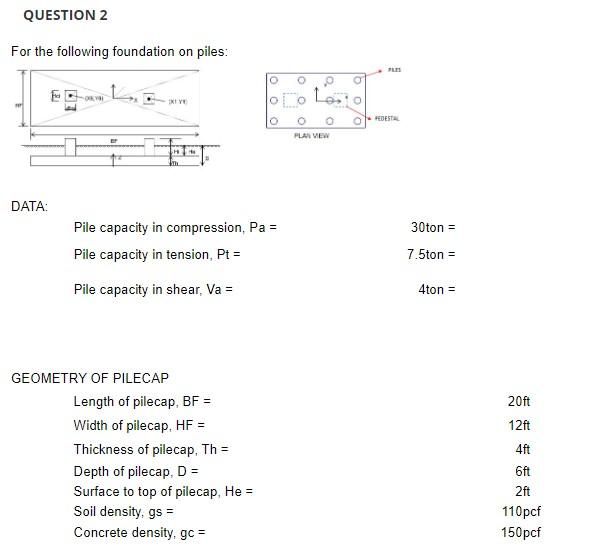

For the following foundation on piles:

For The Following Foundation On Piles Vy Combine Dl Ll What Is The Maximum Compression Load On The Piles 75 Kip 13 1 (29.18 KiB) Viewed 35 times

Vy
Combine:
DL + LL
What is the Maximum Compression Load on the piles ?
75 kip
13 kip
132 kip
1.2 kip
QUESTION 2 For the following foundation on piles: OKY DIVE Th DATA: Pile capacity in compression, Pa = Pile capacity in tension, Pt = Pile capacity in shear, Va= Length of pilecap, BF = Width of pilecap, HF = Thickness of pilecap, Th= Depth of pilecap, D = Surface to top of pilecap, He = Soil density, gs = Concrete density, gc = GEOMETRY OF PILECAP 0 0 O O PLAN VIEW PLES PEDESTAL 30ton = 7.5ton = 4ton = 20ft 12ft 4ft 6ft 2ft 110pcf 150pcf
