1) Design a typical interior beam for the third floor and the first floor using the most economical W12 section at each

Post by answerhappygod »

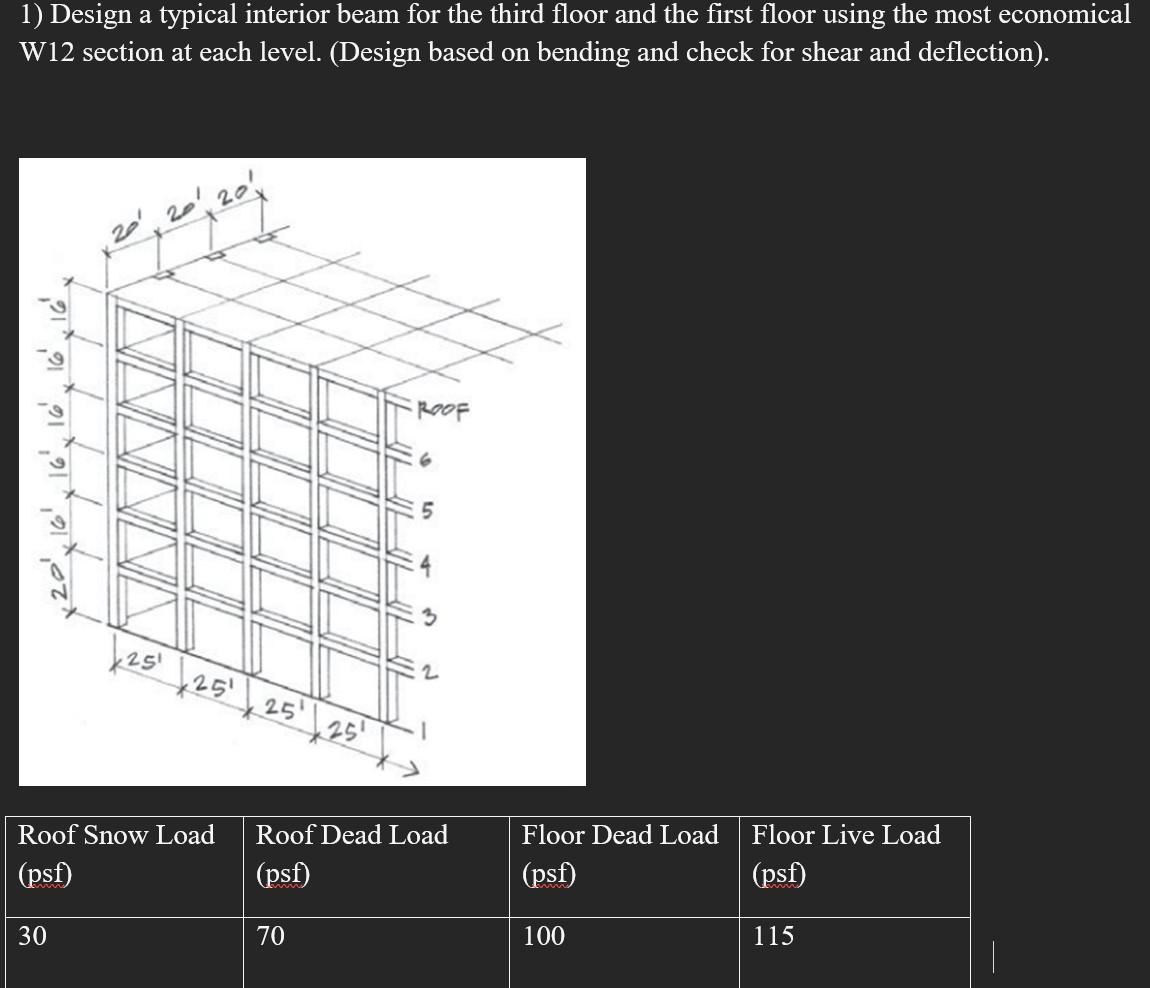

1 Design A Typical Interior Beam For The Third Floor And The First Floor Using The Most Economical W12 Section At Each 1
1 Design A Typical Interior Beam For The Third Floor And The First Floor Using The Most Economical W12 Section At Each 1 (84.94 KiB) Viewed 45 times
Please show all work in beam design process!
thank you!
1) Design a typical interior beam for the third floor and the first floor using the most economical W12 section at each level. (Design based on bending and check for shear and deflection). ROOF Floor Live Load (psf) 115 91 21 161 201 25¹ 10 251 10 st 1251 251 Roof Snow Load Roof Dead Load (psf) (psf) 70 30 Floor Dead Load (psf) 100
