Two blocks are supported by a pulley along an incline of 21 as shown. The lower block B has a weight of 30 lbs and the h

Post by answerhappygod »

Two Blocks Are Supported By A Pulley Along An Incline Of 21 As Shown The Lower Block B Has A Weight Of 30 Lbs And The H 1
Two Blocks Are Supported By A Pulley Along An Incline Of 21 As Shown The Lower Block B Has A Weight Of 30 Lbs And The H 1 (64.16 KiB) Viewed 39 times

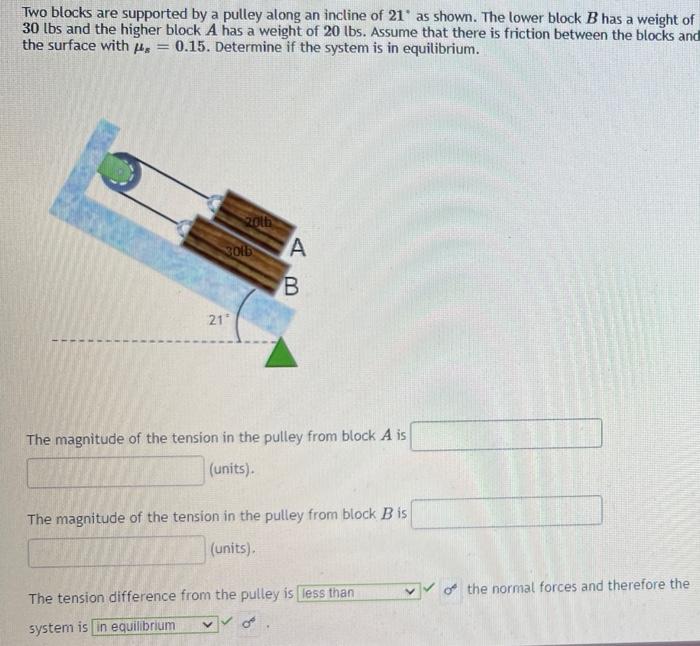

Two blocks are supported by a pulley along an incline of 21 as shown. The lower block B has a weight of 30 lbs and the higher block A has a weight of 20 lbs. Assume that there is friction between the blocks and the surface with = 0.15. Determine if the system is in equilibrium. 20th of the normal forces and therefore the 3016 AB 21 The magnitude of the tension in the pulley from block A is (units). The magnitude of the tension in the pulley from block B is (units). The tension difference from the pulley is less than system is in equilibrium
