Oil (SG = 0.9) flows downward through a vertical pipe contraction as shown in the figure below. If the mercury manometer

Post by answerhappygod »

Oil Sg 0 9 Flows Downward Through A Vertical Pipe Contraction As Shown In The Figure Below If The Mercury Manometer 1
Oil Sg 0 9 Flows Downward Through A Vertical Pipe Contraction As Shown In The Figure Below If The Mercury Manometer 1 (26.23 KiB) Viewed 33 times

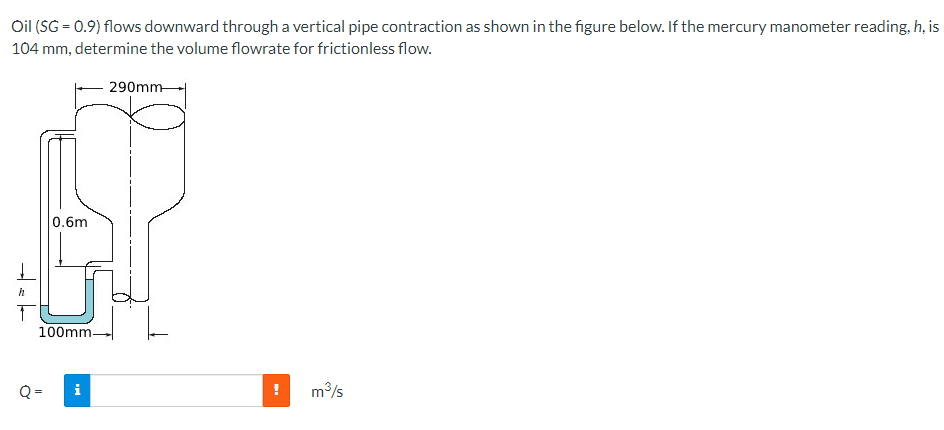

Oil (SG = 0.9) flows downward through a vertical pipe contraction as shown in the figure below. If the mercury manometer reading, h, is 104 mm, determine the volume flowrate for frictionless flow. 290mm- m³/s ↓ h T 0.6m 100mm- i Q=
