(5) For each given state of stress, draw the in-plane and out-of-plane Mohr's circles and determine the absolute maximum
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
(5) For each given state of stress, draw the in-plane and out-of-plane Mohr's circles and determine the absolute maximum

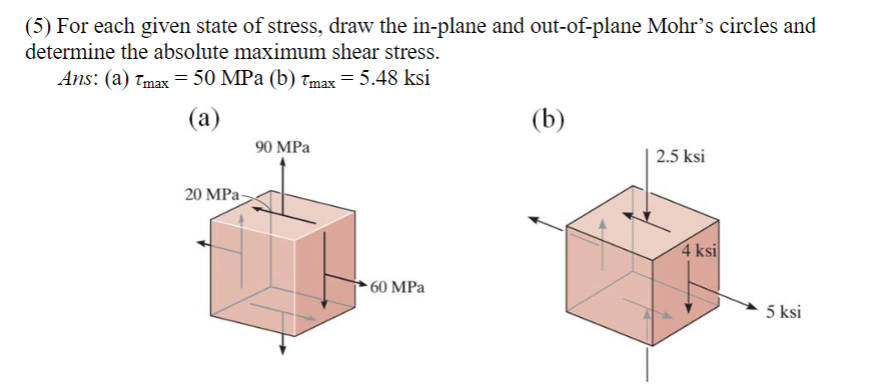

(5) For each given state of stress, draw the in-plane and out-of-plane Mohr's circles and determine the absolute maximum shear stress. Ans: (a) Tmax = 50 MPa (b) Tmax = 5.48 ksi (a) (b) 90 MPa 2.5 ksi 20 MPa- 60 MPa 4 ksi 5 ksi
